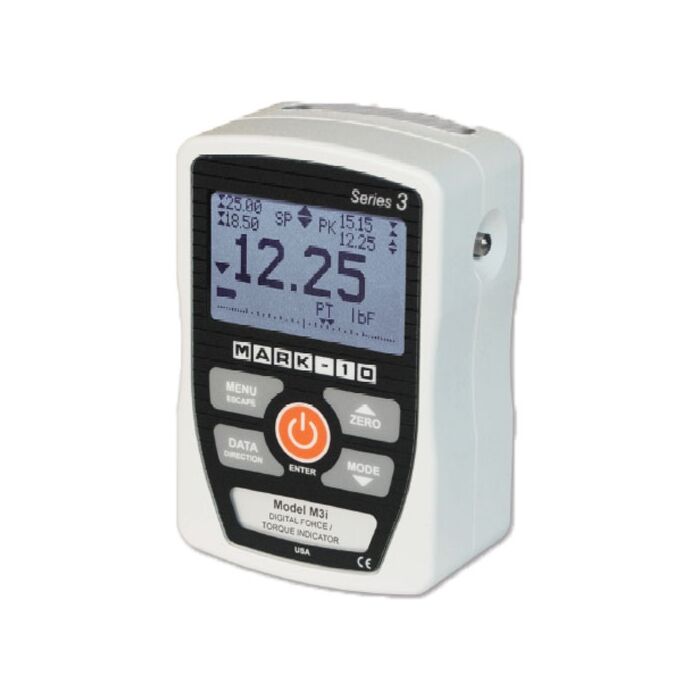

Mark-10 M3I Basic Force/Torque Indicator 110V

Interchangeable force and torque sensors through Plug & Test™ technology (sensors are sold separately)
High-speed 2,000 Hz sampling rate
Ultra-compact size
Large backlit graphic display
Programmable set points with pass/fail indicators
Live load bar graph with set point markers
Peak readings and set points always displayed
Configurable audio alarms and key tones
Programmable auto-shutoff
Configurable audio alarms and key tones
Battery or AC operation
MESUR™ Lite data collection software included
CE mark
Accuracy: ±0.2% of full scale + sensor
Sampling rate: 2,000 Hz
Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery life: Backlight on: up to 7 hours of continuous use
Backlight off: up to 24 hours of continuous use
Measurement units: lbF, ozF, gF, kgF, N, kN, mN (depending on model)
USB Output: Configurable to 115,200 baud
Configurable settings: Digital filters, outputs, automatic output (via USB/RS-232), automatic shutoff, default settings, averaging mode, external trigger, passwords, key tones, audio alarms, backlight, calibration
Safe overload: 150% of full scale (display shows “OVER” at 110% and above)
Weight: 0.7 lb (0.3 kg)
Warranty: 3 years (see individual statement for further details)

Carrying case
Universal voltage AC adapter
Battery
Quick-start guide
USB cable
Resource CD (USB driver, MESUR™ Lite software, MESUR™gauge and MESUR™gauge Plus 90-day trial, and user's guide)
Certificate of conformance.

Overview
