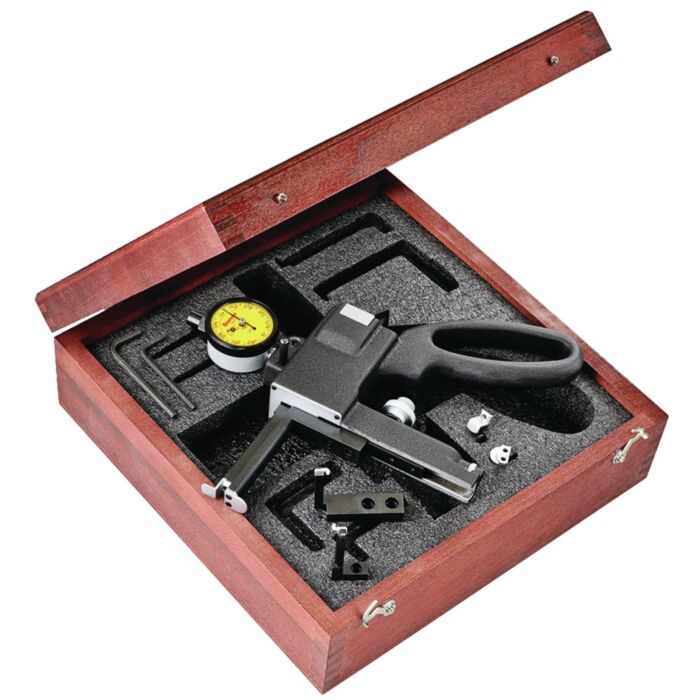

Starrett 1175MZ 65032

Dial Indicator Groove Gage

Order #: 1175MZ

Mfg #: 65032

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $2,265.92 Regular Price $2,336.00

Starrett 1175MZ 65032

Dial Indicator Groove Gage

Order #: 1175MZ

Mfg #: 65032

Special Price $2,265.92 Regular Price $2,336.00
Availability: Ships in 2-3 weeks
Available Promotions

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

This lightweight gage is used for in-process or bench inspection of oil grooves, snap ring retainer grooves, "O" ring seat retainer grooves and similar internal recesses. It is also useful for checking bore dimensions and testing for taper, bell-mouth and out-of-roundness. The movable, sensitive gaging contact has a 1/2" (12.7mm) retractable range and transfers the measurement through a linear, friction-free transfer mechanism to the dial indicator. The lower reference jaw is fixed and supports the entire weight of the gage and the operator's hands, thus preventing incorrect gaging pressure and false readings. The reference jaw can be mounted in two positions on the range adjusting bar. The bar itself is also adjustable for greater or lesser range. A fine adjustment screw and a lock are also provided. 9.5-150mm Range with 81-181-624J Indicator in Case A fine adjustment screw and a lock are also provided.
