Overview
Product Highlights

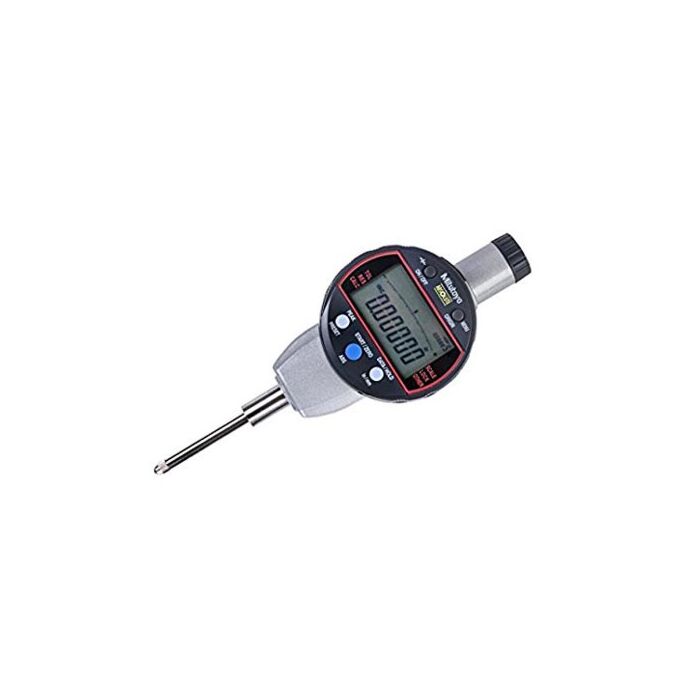

The new Calculation-Type Digimatic Indicator features both a Key- Lock and Parameter-Lock to prevent accidental changing of settings during operation.
Improved parameter setting software makes easy to set all available parameters, and determine and upload the proper coefficients for calculation. (optional)
Fast measurement frequency allows the user to increase the number of readings per second from 10 to 50, allowing higher accuracy measurements of TIR and MAX/MIN.
An analog bar provides easy-to-read values when scanning for Max, Min, and TIR Values.
The Absolute Digimatic indicator performs internal calculations using the formula Ax+B+Cx-1 (assuming spindle displacement as x) while the specified coefficients A, B and C can be set with respect to the purpose of measurement or dimensions of the fixtures. This unique features allows you to read your measurements directly, without the need for conversions.
Resolution .00001-.05in 0.0002-1mm
Range 1in 25.4mm
Accuracy .00012in
Measuring Force 2.0N or less
Type ANSI/AGD type
Stem dia 3/8 in
4-48 UNF Thread
