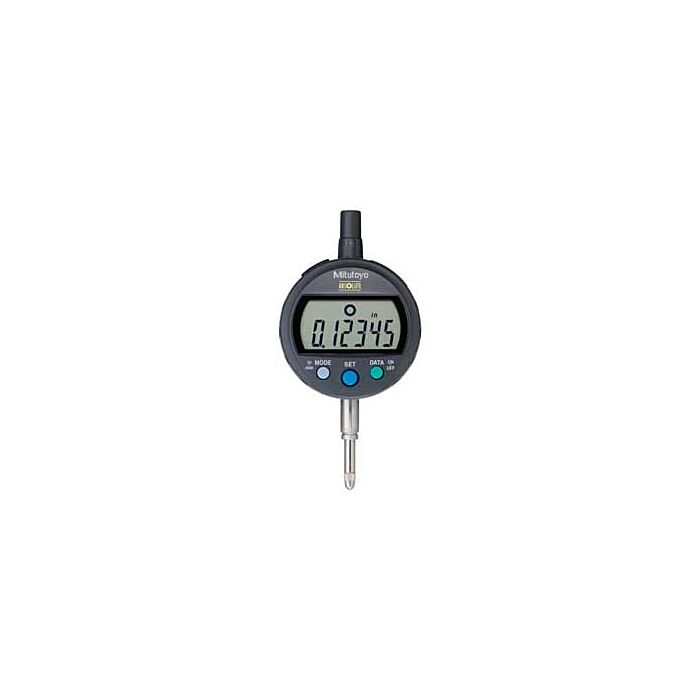

Mitutoyo 543-404B Digimatic Indicator

Product Highlights

• As compact as standard Series 2 dial indicators
• Large, easy-to-read LCD
• GO/±NG judgment can be performed by setting upper and lower tolerance limits
• The judgment result (GO/±NG) can be displayed in full-size characters
• The positive/negative count resulting from the spindle™s up/down movement can be toggled
• Internal calculations using the simple formula of [F(x)=Ax)] are available
• Employing the ABSOLUTE linear encoder, the ID-C always displays the spindle "Absolute Position" from the origin at power-on
• Unlimited response speed eliminates over-speed errors
• The ID-C indicator face can be rotated 330° to an appropriate angle for easy reading
• With SPC data output
• Model ID-C1012CX
• Resolution 0.01mm
• Range 0-12mm
• Contact Point Stem 8mm M2.5 x 0.45 Thread
• Accuracy 0.02mm
• Measuring Force Less than 0.2, 0.3, 0.4, 0.5N
• Type ISO/JIS
• Low measuring force
