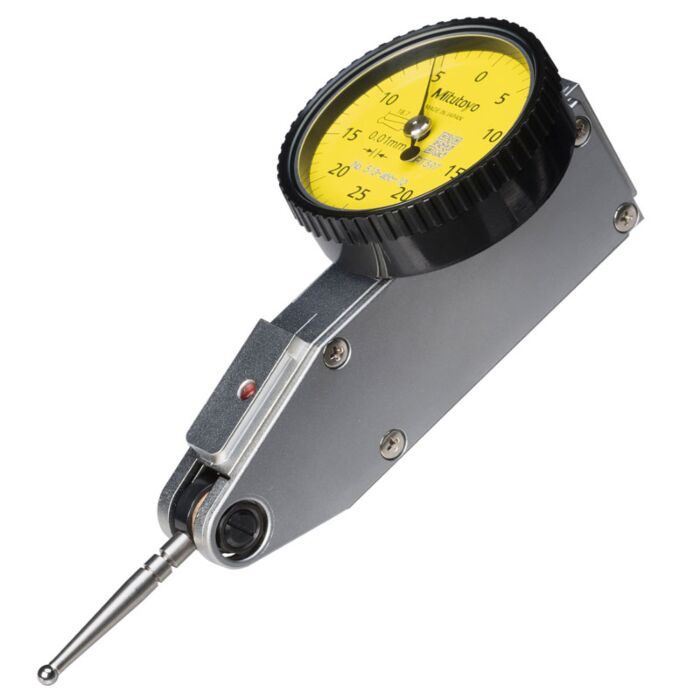

Mitutoyo 513-466-10E Dial Indicator Basic Set Standard Yellow Dial

Order # 513-466-10E | Mfg # 513-466-10E
Save 8%
$181.00
$166.52
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

  • Drastically enhanced durability, sensitivity and visibility
  • Glare-free flat crystal face allows easy reading of graduations.
  • O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
  • Multi-layer coatings on the crystal

Technical Resources

Specifications

Range: 0.5 - 0.5mm
Graduation: 0.01 mm
Scale: 0-25-0
Measuring force: 0,01-0,3N
Carbide stylus tip Ø2 mm No.: 137557
Mass: 41g
Contact point: Thread M 1.7 x 0.35
Delivered: In box with clamping shaft Ø8.0 mm
Double scale spacing: Yes
Compact type: Yes
Anti-magnet: Yes
Functions: Basic set
Inch-Metric: Metric
MPE any 10 scale divisions: 5
MPE measuring range: 5
Hysteresis: 3
Repeatability: 3
