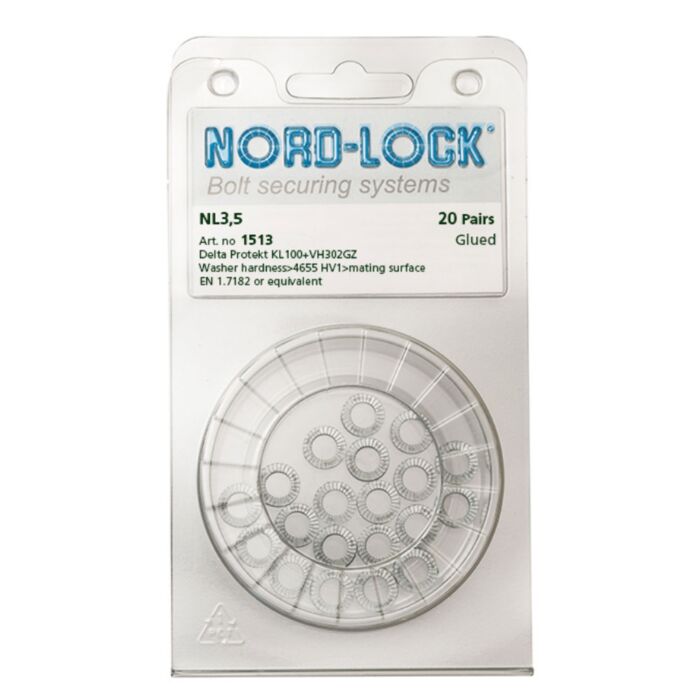

NORD-LOCK NL3.5 Wedge Locking Washers, M3.5, ID 0.15", OD 3/10", 200prs/bx

NORD-LOCK NL3.5

Order # NL3-5

Mfg # NL3.5

call-regular 800-828-1470
$82.99
Loading...
Loading...
  • Overview
  • Specifications

NORD-LOCK NL3.5

Order # NL3-5 | Mfg # NL3.5
$82.99
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

Steel wedge Locking Washers, #6 (M3.5), Steel, Delta Protekt ID 0.15", OD 3/10", 200prs/bx

  • Nord-Lock wedge-locking washers secure bolted joints
  • Wedge-locking washers suitable for many different tasks and challenges
Product Details
  • Bolt size: 3.5 mm
  • Inner diameter (d): 3.9 mm
  • Outer diameter (D): 7.6 mm
  • Thickness (T): 1.8 mm
  • Material: Steel
  • Article number: 1513
  • Pairs per pack: 200
Technical Specifications
  • Steel Type: EN 1.7182
  • Available sizes with normal outer diameter: M3 - M42 (metric) and #5 - 1 1/2" (inches)
  • Available sizes with enlarged outer diameter: M3.5 - M36 (metric) and #6 - 1 3/8" (inches)
  • Surface coating: Zink flake coating, Delta Protekt

Specifications

Nord-Lock Bolt size Washer size [mm]
Product name Metric UNC Inner diameter (d) Outer diameter (D) Thickness (T)
NL3 M3 #5 3.4 7.0 1.8
NL3.5 M3.5 #6 3.9 7.6 1.8
NL3.5sp M3.5 #6 3.9 9.0 1.8
NL4 M4 #8 4.4 7.6 1.8
NL4sp M4 #8 4.4 9.0 1.8
NL5 M5 #10 5.4 9.0 1.8
NL5sp M5 #10 5.4 10.8 1.8
NL6 M6   6.5 10.8 1.8
NL6sp M6   6.5 13.5 2.5
NL1/4"   1/4" 7.2 11.5 2.5
NL1/4"sp   1/4" 7.2 13.5 2.5
NL8 M8 5/16" 8.7 13.5 2.5
NL8sp M8 5/16" 8.7 16.6 2.5
NL3/8"   3/8" 10.3 16.6 2.5
NL3/8"sp   3/8" 10.3 21.0 2.5
NL10 M10   10.7 16.6 2.5
NL10sp M10   10.7 21.0 2.5
NL11 M11 7/16" 11.4 18.5 2.5
NL12 M12   13.0 19.5 2.5
NL12sp M12   13.0 25.4 3.4
NL1/2"   1/2" 13.5 19.5 2.5
NL1/2"sp   1/2" 13.5 25.4 3.4
NL14 M14 9/16" 15.2 23.0 3.4
NL14sp M14 9/16" 15.2 30.7 3.4
NL16 M16 5/8" 17.0 25.4 3.4
NL16sp M16 5/8" 17.0 30.7 3.4
NL18 M18   19.5 29.0 3.4
NL18sp M18   19.5 34.5 3.4
NL3/4"   3/4" 20.0 30.7 3.4
NL3/4"sp   3/4" 20.0 39.0 3.4
NL20 M20   21.4 30.7 3.4
NL20sp M20   21.4 39.0 3.4
NL22 M22 7/8" 23.4 34.5 3.4
NL22sp M22 7/8" 23.4 42.0 4.6
NL24 M24   25.3 39.0 3.4
NL24sp M24   25.3 48.5 4.6
NL1"   1" 27.9 39.0 3.4
NL1"sp   1" 27.9 48.5 4.6
NL27 M27   28.4 42.0 5.8
NL27sp M27   28.4 48.5 5.8
NL30 M30 1 1/8" 31.4 47.0 5.8
NL30sp M30 1 1/8" 31.4 55.0 5.8
NL33 M33 1 1/4" 34.4 48.5 5.8
NL33sp M33 1 1/4" 34.4 58.5 5.8
NL36 M36 1 3/8" 37.4 55.0 5.8
NL36sp M36 1 3/8" 37.4 63.0 6.6
NL39 M39 1 1/2" 40.4 58.5 5.8
NL42 M42   43.2 63.0 5.8
