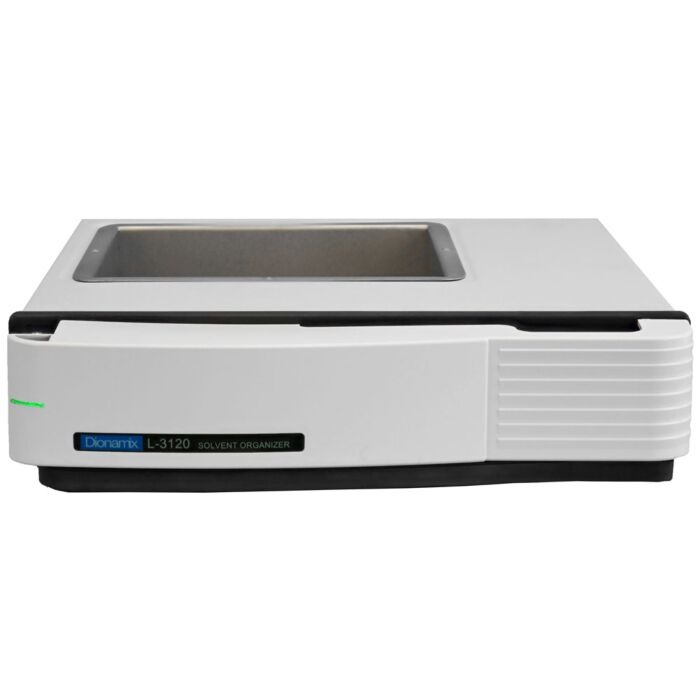

Dionamix L-3120 Solvent Organizer Pump

Overview

Product Highlights

The Dionamix Solvent organizer is an integral part of the L-3000 HPLC system. Prior to distributing the mobile phase solvents, the L-3120 with a 2-Channel Degasser removes unwanted gasses from the solvent. Removing dissolved gasses from the mobile phase reduces pressure fluctuations which improves baseline measurement stability and increases sensitivity.

The L-3100 series Solvent Organizers include a peristaltic pump used for online cleaning of the HPLC system pumps. Cleaning the HPLC pumps removes crystal deposits in the pump and seals, prolonging the life of the pumps.

Available with 2 or 4 channel degasser
Built in peristaltic pump for automatic cleaning HPLC pump system

Technical Resources

Dionamix HPLC Brochure
Dionamix HPLC Cannabis Test Application Note

Specifications

	L-3100	L-3120
Online Wash	Standard	Standard
Online Degassing	None	2 Channel (480 µL/Channel)
Online Cleaning Flow Rate	High, Mid or Low	High, Mid or Low

Specification
Weight	L-3100 6.6 kg (14.5 lbs)	L-3120/3140 8 kg (17.6 lbs)
Weight	Dimension (LxWxH)	464 x 370 x 90 mm	18.3 x 14.6 x 3.5 inches
Voltage	Dimension (LxWxH)	110 VAC rms - 240 VAC rms
Frequency	50 Hz - 60 Hz
Power	60 W max
Operating Temperature	15°C - 35°C, 59 °F - 95°F
Operating Humidity	20% RH - 80% RH
