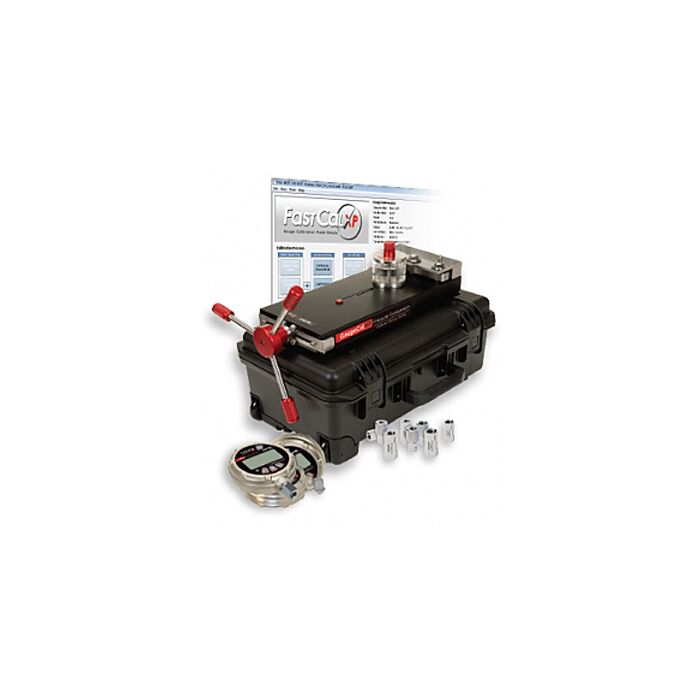

Crystal CRYSTALCALHP-NPT Automated Gauge, Calibration System with NPT Fitting Kit

Order # CRYSTALCALHP-NPT | Mfg # CRYSTALCALHP-NPT
$9,464.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

  • Gauge / chart recorder / transmitter calibration system
  • 7 to 10 times faster than a dead weight tester
  • Reduces transcription / calculation errors
  • 0.1% of reading accuracy up to 15 000 psi (1000 bar) when using the XP2i as the reference or 0.05% of reading accuracy up to 5000 psi (300 bar) when using the 30 Series as the reference
  • Easy to use and install, wizards guide you through setup
  • Weighs just 35 lbs/16 kg

Each Unit Includes

  • P/N 5102: Fine Adjust (included)
  • P/N 5101: Rolling Case
  • Two MPF-CAP fittings to prevent leaks while in transit, two hold-down straps, and fluid bottle.
  • P/N FASTCALXP: Gauge and Transmitter Calibration Software FastCalXP software, USB Security Key, CD, USB-RS232 adapter, and 30 series RS232 cable.
  • P/N 3327: USB Footswitch for FastCalXP
  • P/N 5103: Rebuild kit

Technical Resources
