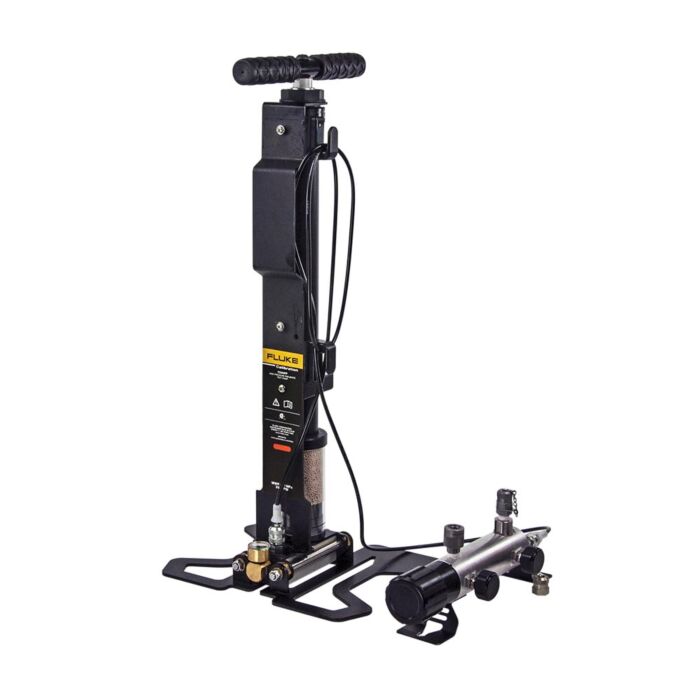

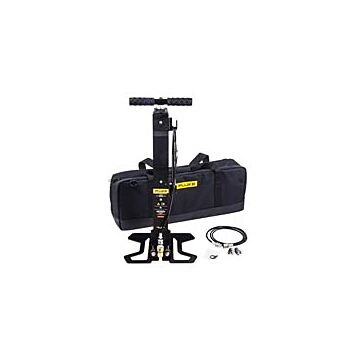

Fluke Calibration 700HPPK High Pressure Pneumatic Pump / Comparator, 3000psi, NPT

Order # 700HPPK-NPT | Mfg # 4784838
$5,930.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Fluke Calibration 700HPPK-NPT Highlights

  • Includes Calibration Manifold for easy connection to gauges and adjustment of pressures
  • Rugged, portable and stable enough to work almost anywhere
  • Reaches 3000 psi in 20 seconds into a 30 cubic centimeter volume
  • in-line filter and desiccant systems protect device from contamination from the DUT
  • Max Working Pressure: 3000 psi
  • Manifold Included with 2 test ports
  • Contamination Prevention: In-line filter and desiccant system
  • Pressure Generation Time: 20 seconds
  • Supplied Test Port Adapters: 1/8, 1/4 NPT

The 700HPPK is designed to be at home in the lab or the field. Lightweight and portable, it features collapsible feet, built-in handhold, and a canvas carrying case, making it easy to carry to the field.

The 700HPPK works on just about any surface, so you don’t need a flat laboratory bench or flat area in the field.

With the 700HPPK, you don’t need to carry a lot of extra equipment or accessories. No PTFE tape or extra tools are required thanks to a swivel ¼ NPT female reference gauge connector that makes switching reference gauges fast and easy.

The pump kit is designed so that the calibration manifold attaches and detaches easily via quick detent pins. You won’t need to spend a lot of time setting it up or packing it away at the end of the day.

The 700HPPK generates pressure up to 21 MPA (3000 psi) within 20 seconds to full scale into a 10 cm3 volume. A detachable pressure adjustment system and adjustment control knob enables users to make fine pressure adjustments to 0.1% of reading or better. The 700HPPK includes a 2 meter (6.5-foot ) pressure line and assorted pressure fittings, enabling you to connect a wide variety of DUTs for wide workload coverage. In fact, the 700HPPK covers at least five times more workload than standard range pneumatic pumps. An in-line filter system protects the system against contamination from the unit under test.

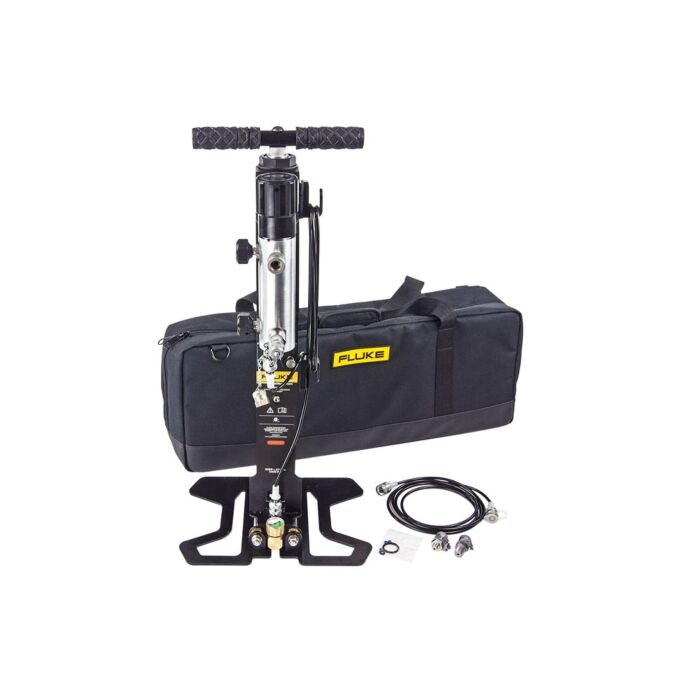

Each Fluke Calibration 700HPPK-NPT Includes

  • Pump/Comparator
  • Canvas Carrying Bag
  • High Pressure Pneumatic Quick Service Kit (Seals for Pump)
  • Dry Pac Refill
  • Silicone Grease
  • High Pressure Hose
  • Test Port Adapters

Webinars

How to Calibrate a Pressure Gauge Webinar with Fluke Calibration

Technical Resources

Specifications

Max Working Pressure 3000 psi
Weight 15.8 lbs
Height 36 inches
Manifold Included with 2 test ports
Contamination Prevention In-line filter and desiccant system
Fine Adjustment Resolution 0.05 % reading
Maximum Leak Rate 0.01 % reading
Pressure Generation Time 20 seconds
Supplied Test Port Adapters 1/8, 1/4 NPT

Fluke Calibration 700HPPK High Pressure Pneumatic Pump / Comparator, 3000psi, NPT Accessories

checkbox-empty
Select
Fluke Calibration 2700G-BG100K Reference Pressure Gauge, -15 to 15 PSI
checkbox-empty
Select
Fluke Calibration 2700G-BG100K/C Reference Pressure Gauge, -15 to 15 PSI with Accreditation Calibration
checkbox-empty
Select
Fluke Calibration 2700G-BG2M Reference Pressure Gauge, -12 to 300 PSI
checkbox-empty
Select
Fluke Calibration 2700G-BG3.5M/C Reference Pressure Gauge, -12 to 300 PSI with Accreditation Calibration
checkbox-empty
Select
Fluke Calibration 2700G-BG200K Reference Pressure Gauge, -15 to 30 PSI
checkbox-empty
Select
Fluke Calibration 2700G-BG3.5M Reference Pressure Gauge, -12 to 500 PSI
checkbox-empty
Select
Fluke Calibration 2700G-BG7M Reference Pressure Gauge, -12 to 1000 PSI
checkbox-empty
Select
Fluke Calibration 2700G-BG700K Reference Pressure Gauge, -12 to 100 PSI
checkbox-empty
Select
Fluke Calibration 2700G-G20M Reference Pressure Gauge, 0 to 3000 PSI
checkbox-empty
Select
Fluke Calibration 2700G-G20M/C Reference Gauge, 0 to 3000 PSI with Accredited Calibration
checkbox-empty
Select
Fluke Calibration 2700G-G35M Reference Pressure Gauge, 0-5000 PSI
checkbox-empty
Select
Fluke Calibration 2700G-G70M Reference Pressure Gauge, 0 to 10, 000 PSI
checkbox-empty
Select
Fluke Calibration 2700G-BG200K/C Reference Gauge, -15 to 30 PSI with Accredited Calibration
checkbox-empty
Select
Fluke Calibration 2700G-BG3.5M/C Reference Pressure Gauge, -12 to 500 PSI with Accredited Calibration
checkbox-empty
Select
Fluke Calibration 2700G-BG7M/C Reference Pressure Gauge, -12 to 1000 PSI with Accredited Calibration
checkbox-empty
Select
Fluke Calibration 2700G-BG700K/C Reference Pressure Gauge, -12 to 100 PSI with Accredited Calibration
checkbox-empty
Select
Fluke Calibration 2700G-G35M/C Reference Pressure Gauge, 0 to 5000 PSI with Accredited Calibration
checkbox-empty
Select
Fluke Calibration 2700G-G70M/C Reference Pressure Gauge, 0 to 10, 000 PSI with Accredited Calibration
checkbox-empty
Select

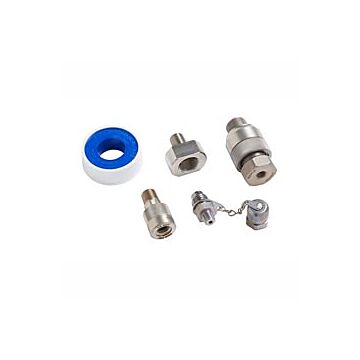

Fluke Calibration 700HPF-NPT High Pressure Pneumatic Premium Fittings, NPT
checkbox-empty
Select

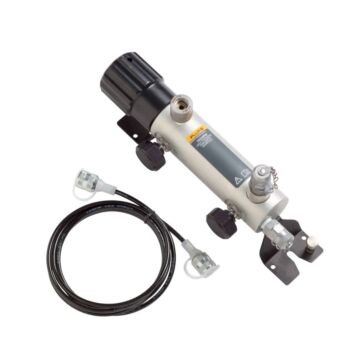

Fluke Calibration 700HPM High Pressure Pneumatic Calibration Manifold, 3000 psi
