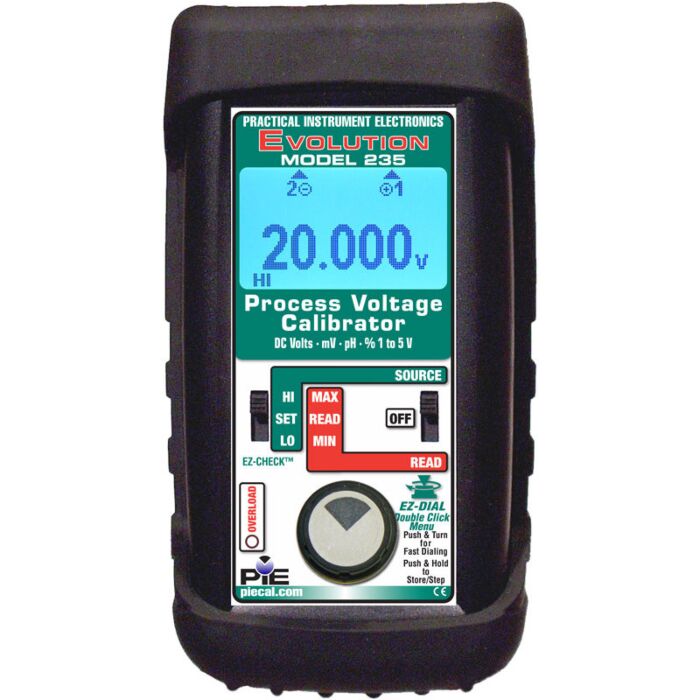

PIE 235

Process Voltage Calibrator

Order #: PIE 235

Mfg #: PIE 235

Questions about availability or need help? Contact Us:

(800) 633-0561
$899.00

PIE 235

Process Voltage Calibrator

Order #: PIE 235

Mfg #: PIE 235

$899.00
The PIE 235 Process Voltage Calibrator checks, calibrates and measures voltage instruments. The 20V range has an extended span of up to 24V giving you a portable source for powering your loops. The PIE 235 has a pH simulator used to verify proper operation of pH devices before you place a probe into a calibrated buffer
Availability: Ships in 2-3 Weeks
Available Promotions

Choose Your Options:

Add Accredited Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate?

Already have this this item and need calibration? Request a calibration quote

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Source three ranges of mV & V dc plus percent of 1 to 5 volts
    • With the 235 you can check, calibrate and measure all your voltage, millivolt and pH signal instruments in your plant. Source -500.00 to 999.00 mV, 1.000 to 5.000 V, -25.00 to +125.00% of 1 to 5 V; 0.000 to 20.000 V.
  • Power your loops with over 1,000 Ohm loads
    • The 20.000 V range has an extended span of up to 24.000 Volts giving you a portable source for powering your loops.
  • Read DC volts
    • The 235 can measure from -500.00 to +999.00 mV, 0.000 to 5.100 V, -25.0 to 125.0 % of 1 to 5 V; 0 to 20.000 V and 0.00 to 60.00 V DC. Use it to check loop power supplies, I/V converters, 1 to 5 Volt signals, and other voltages.
  • Save time calibrating recorders and monitors in 4 to 20 mA loops
    • Other brands of calibrators require that you break the loop to calibrate voltage inputs. With the PIE 235 you simply clip the test leads across the voltage inputs in a live 4 to 20 mA loop without disconnecting any wires.
  • Simulate pH probes into transmitters & analyzers
    • Use the pH simulator to verify proper operation of pH devices before you place a probe into a calibrated buffer.
  • Quickly set any three outputs plus automatic stepping & ramping
    • Easily set any value with the adjustable DIAL plus store any three output settings for instant recall with the EZ-CHECK switch. 2, 3, 5 & 11 steps automatically increment output in 100%, 50%, 25% or 10% of span plus continuous ramp. Set step/ramp time to 5, 6, 7, 8, 9, 10, 15, 20, 25, 30 & 60 seconds.
  • Use in the Plant, Field or Shop
    • Includes Rubber Boot and Attached Test Leads; Low profile switches resist accidental damage
  • Simple Battery Changes
    • Separate compartment for no-tool battery changes with four inexpensive "AA" batteries

Advantages of the PIE Model 235

  • Wider ranges with greater accuracy
    • More than twice as accurate with 10 times greater resolution.
  • Automatic stepping
  • Larger display with backlight
    • Easy viewing in dark locations
  • More Resistant to Accidental Damage
    • Rubber Boot and Stronger Switches
  • Separate Battery Compartment with 4 "AA" Batteries
    • No more removing housing with screwdriver to replace three expensive 9V batteries. Calibration seals remain intact.
  • Simulate a pH probe
    • Calibrate pH transmitters and analyzers before attaching probe to verify that each is working correctly.
  • Includes Certificate of Calibration
    • All PIECAL Calibrators come with a free signed and dated certificate.
