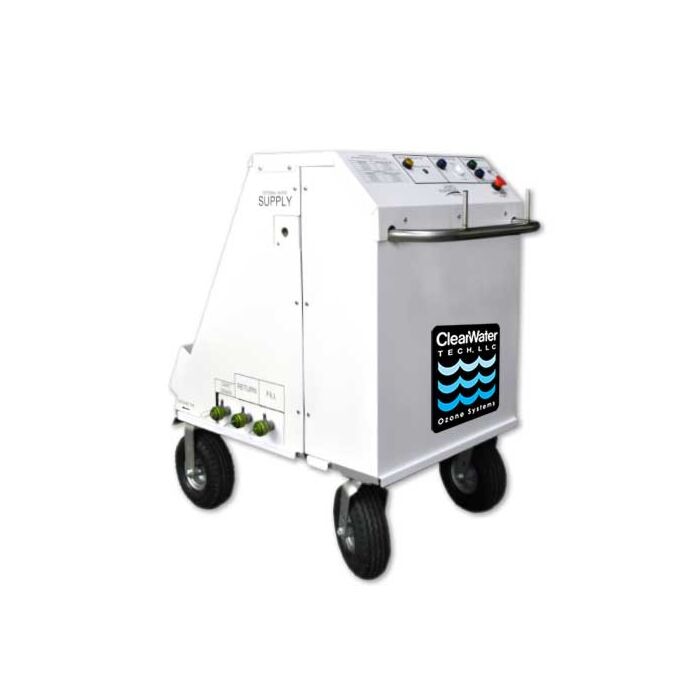

ClearWater Tech offers the AviOzonx Mobile Water Disinfection System designed specifically for the aviation industry to disinfect an airplane's onboard potable water system and the water that it contains with the power of ozone. Ozone is the strongest oxidizer and disinfectant commercially available, more effective and many times faster acting than other oxidizing and disinfecting chemicals.
Unlike traditional chemicals, ozone is produced on-site to meet the needs of the aviation disinfection protocol, not only meeting, but exceeding the US EPA's Aircraft Drinking Water requirements. Ozone enriched water not only has this capability, but is also safe to handle, leaves no residues in the system, and is safe for the environment.
This mobile system will significantly reduce service and ground time of aircraft by reducing the fill and drain steps, typically required of other chemical treatment standard operating procedures.
- Electrical Power:
- 120VAC 60HZ 18.0A
- Power cord: 25'
- GFI Protected
Ozone Output
- Dissolved Ozone: 5PPM
- Ozone Generator Output: 11gr/hr@12 SCFH, 5% by weight
Water Inlet Municipal
- Inlet Pressure (min/max) 50-80PSI
- Inlet GPM (min) 8GPM
- Inlet Temperature (max) 75F, 24C
- Water pH (min/max) 7.0 to 7.6pH
Sanitation Times (may vary by airline)
- Treats a 767 in 90 mins or 737 in 45 mins
Design Features:
- Controls
- Oxygen Production
- Ozone Production
- Ozone Injection and Contracting
- Ozone Degassing and Destruction
Inlet Water Regulation
Water Circulation Filtration
Timer Controlled Operation
System Drain Feature
Mobile
Can be ordered with hoses and connections to aircraft
