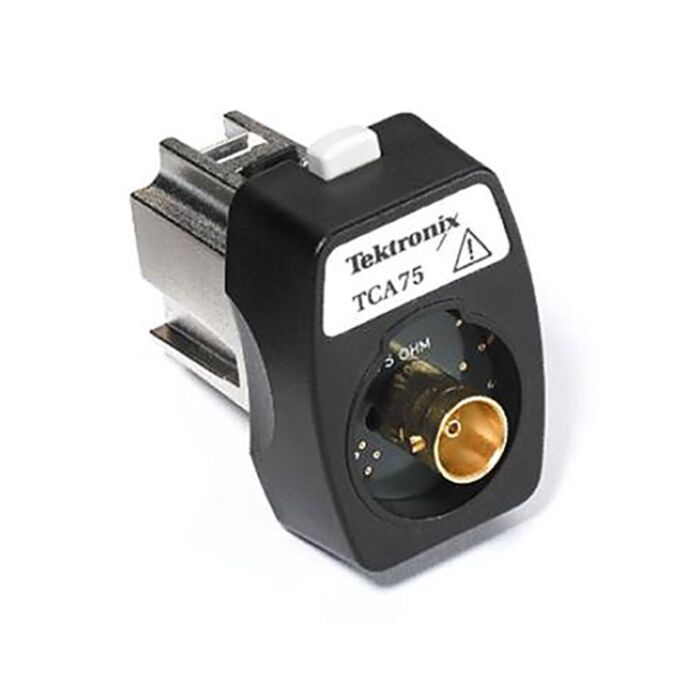

Tektronix TCA75 TekConnect Adapter, 75 Ohm to 50 Ohm, with 75 Ohm BNC Input

Product Highlights

TekConnect TCA Series Adapters expand the functionality of Tektronix high-performance oscilloscopes. This family of adapter systems provide better performance and less signal distortion than traditional connections used to move a signal from one environment to another, such as BNC to N or BNC to SMA.

The TCA75 adapter allows Tektronix oscilloscopes with a TekConnect interface to easily access and measure 75 Ω terminated circuitry. The TCA75 attenuation factor is automatically corrected to provide the end user with correctly displayed signal magnitudes.

• DC to ≥23 GHz (instrument dependent)
• VSWR - 1.1:1 (26.45 dB)
• 75 Ω input
• Auto Attenuation Factor Correction
