Dracal CONN-M8A-FRP80 M8 A-code 4-pin Female Front-Mount Connector

Dracal CONN-M8A-FRP80

Order # CONN-M8A-FRP80

Mfg # 250076

call-regular 800-828-1470
$25.87
Loading...
Loading...
  • Overview

Dracal CONN-M8A-FRP80

Order # CONN-M8A-FRP80 | Mfg # 250076
$25.87
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

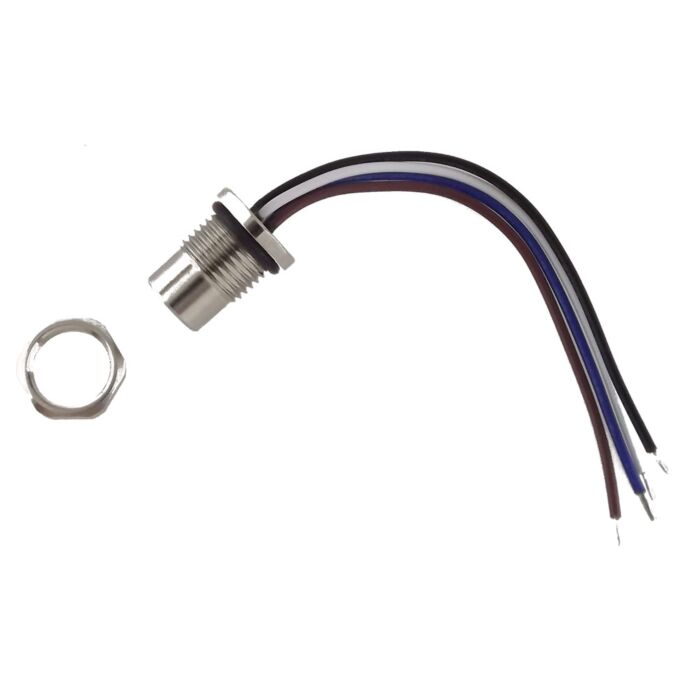

CONN-M8A-FRP80: 4-pin female connector.

This is a 4-pin IP67 waterproof M8 female connector. It is compatible with code A. This connector should be assembled from the inside of a housing or a panel.

  • Specifications
    • M8 protection rating: IP67
    • Operating temperature: -10°C to 80°C
    • Connector: M8, A-code female, 4-pin
    • Contacts: Phosphorus and gold plating
    • Wire gauge: 24 AWG (0.24 mm2)
    • Weight: 80 g
    • Wires length: 80mm
    • Hole diameter: 11 mm
    • Rating voltage: 30V Ac/DC
    • Maximum current: 3A

    • Each Unit Includes

    • One (1) CONN-M8A-FRP80
