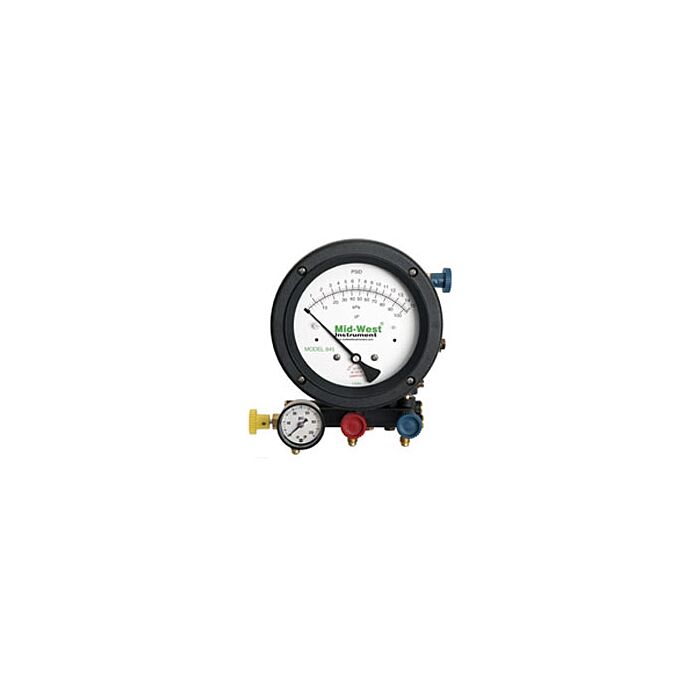

Mid-West Instrument 845-5

BackFlow Test Kit, 0-15 PSID 500 PSIG Max Working Pressure

Order #: 845-5

Mfg #: 845-5

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $780.85 Regular Price $805.00

Mid-West Instrument 845-5

BackFlow Test Kit, 0-15 PSID 500 PSIG Max Working Pressure

Order #: 845-5

Mfg #: 845-5

Special Price $780.85 Regular Price $805.00
Model 845-5 (5) valve kit provides the capability for testing all brands of reduced pressure principle, pressure vacuum breaker and double check valve backflow prevention assemblies.
Availability:
In stock
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Over 30 Years of Input from Backflow Technicians
  • (5) Valve Test Kit
  • Specially Designed for Testing Backflow Prevention Assemblies
  • Soft-Seated Brass Needle Valves (with replaceable valve seats)
  • Test kit is protected with 90 micron filters to minimize plugging with scale, sand, etc. Filter elements can be cleaned or replaced
  • Portable / Removable from Case
  • Durable Molded Plastic Carrying Case
  • Improved Case with Storage Compartments for Fittings & Tools
  • Test Procedures are Laminated in Clear Plastic
  • 5 Year Warranty
  • Gauge Type Diaphragm Differential Pressure
  • Dial Size & Range (4 1/2") 0-15 PSID / 0-100 KPA
  • Differential Pressure Accuracy ± .2 P.S.I.D. (Descending)
  • Working Pressure: 200 PSIG
  • Body Material: Glass Reinforced Engineering Thermoplastic
  • Wetted Internals: EP Elastomers, Brass and 316 S.S. Metal Parts
  • Line Pressure Gauge: 1 1/2" 0-200 PSIG
  • Hoses & End Fittings: Buna-N jacket and liner. Schrader 1/4" brass coupler -
  • Hose Length: Three (3) each / 5' long (color-coded)
  • Bleed Tube, One each / 4' long clear bleed tube.
  • Adaptor Fittings: (3) sets of brass fittings provided for hookup to all standard size test cocks
  • Gauge Weight: 3.6lbs / 1.6kg
  • Case: Durable Molded Plastic
  • Size: 18 1/2"L x 9"W x 9 3/4"H
  • Temperature Limitations: Maximum 150°F/65°C
