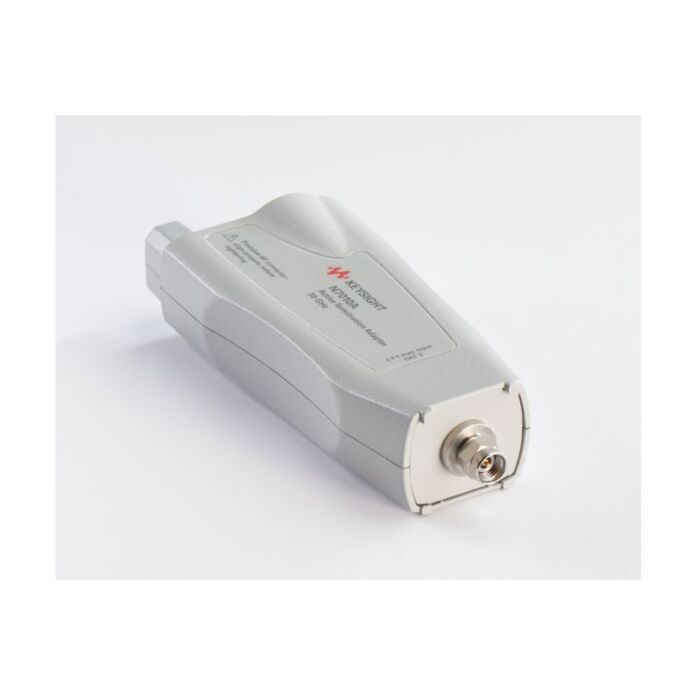

Keysight N7010A

Active Termination Adapter 30GHz

Order #: N7010A

Mfg #: N7010A

Questions about availability or need help? Contact Us:

(800) 633-0561
$5,839.00

Keysight N7010A

Active Termination Adapter 30GHz

Order #: N7010A

Mfg #: N7010A

$5,839.00
Availability: Ships in 3-4 Weeks
Available Promotions
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • 30 GHz single-ended active termination adapter supporting 2.92 mm/3.5 mm/SMA cable input
  • Low attenuation setting (1.16:1) for high SNR, low noise measurements
  • Ability to terminate signal to a 50 Ω non-ground voltage (VTERM)

The Keysight N7010A active termination adapter is a 30 GHz single-ended adapter featuring a user-adjustable common termination voltage (VTERM) and extremely low noise performance.

The adapter was designed to address applications such as HDMI 2.0, DisplayPort and MIPI M-PHY Gear 3/4. The oscilloscope can internally control the termination voltage to keep it between -4.0 V to +4.0 V. Utilizing low attenuation ratio setting (1.16:1), the adapter enables extremely lower noise floor.

Previously solved by using expensive probe solution in single-ended mode, now you get the performance and price point you want. This adapter is compatible with Infiniium 90000 Q-, Z-Series and V-Series oscilloscopes installed with software version 5.30 or higher and Infiniium 90000 X-Series with software version 5.50.0030 or higher.
