Keysight HD300USBA USB Analysis Software for InfiniiVision 300 HD-Series

The HD3 Series brings Keysight's industry-leading capabilities from high-performance oscilloscopes to the high-volume level, making precision portable from 200 MHz to 1 GHz. Leveraging custom hardware technology from the UXR Series, the HD3 boasts impressive resolution with four times the vertical accuracy with a 14-bit ADC and half the noise floor of other 12-bit scopes. Paired with our fast waveform update rate, digital trigger, and deep memory, the HD3 Series can capture small signals with high vertical resolution.

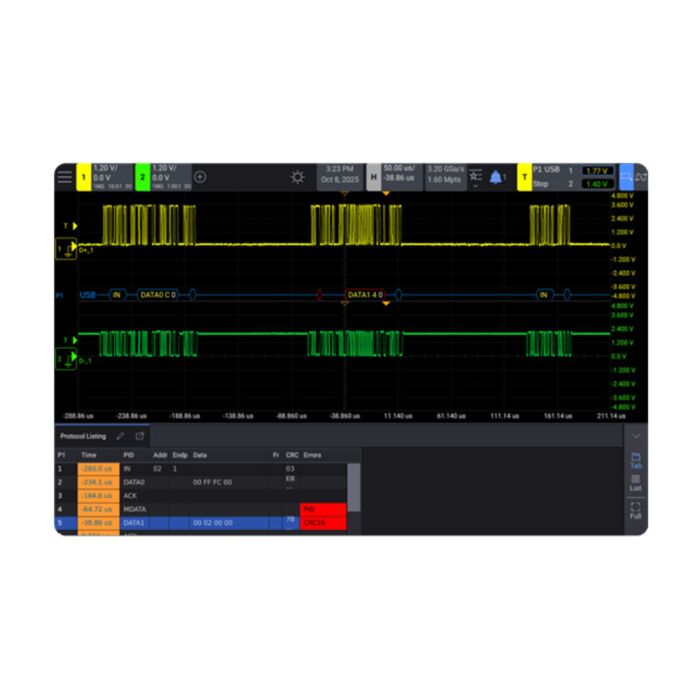

HD300USBA provides USB 2.0 and USB PD trigger, decode, and search. USB 2.0 supports low-, full-, and hi-speed signaling rates.

• USB 2.0 and USB PD trigger, decode, and search
• USB 2.0 supports low-, full-, and hi-speed signaling rates

Applications

• USB device development
• USB host controller / host port development
• Power delivery and charger design
• Compliance/debug of USB physical layer
• Embedded systems with USB interfaces

Each Unit Includes

• USB Analysis Software, For InfiniiVision HD3 Series (HD300USBA)
