The HD3 Series brings Keysight's industry-leading capabilities from high-performance oscilloscopes to the high-volume level, making precision portable from 200 MHz to 1 GHz. Leveraging custom hardware technology from the UXR Series, the HD3 boasts impressive resolution with four times the vertical accuracy with a 14-bit ADC and half the noise floor of other 12-bit scopes. Paired with our fast waveform update rate, digital trigger, and deep memory, the HD3 Series can capture small signals with high vertical resolution.
I²C, SPI, RS232/422/485/UART triggering and decoding for the InfiniiVision HD3 Series oscilloscopes. The embedded software package for Keysight's InfiniiVision HD3 Series oscilloscopes enables protocol triggering and decode for a broad range of the most common serial buses used today for embedded and mixed-signal designs. Capture any errors on your serial bus with the fastest waveform update rate combine with the hardware-based decoding.
- The most accurate and fastest solution for triggering on and analyzing I²C, SPI, I²S, and RS232/422/485/UART serial buses
- Multiple bus decode triggering and listing display
- Perform 2-wire, 3-wire, and 4-wire SPI serial protocol trigger and analysis

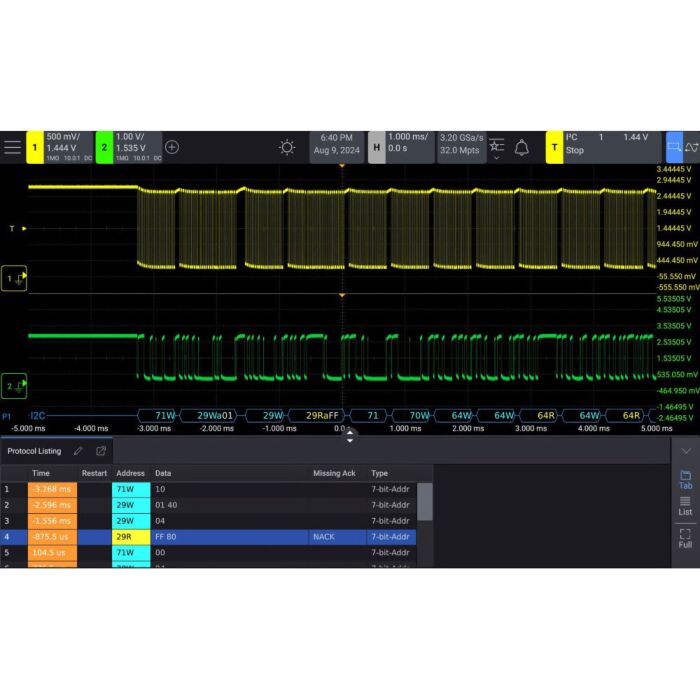

- On-screen serial decode time-correlated with the serial data waveforms
Applications
- Embedded & mixed-signal design verification
- Debugging serial communication
- Time-correlating serial protocol data with analog waveforms
- High-update-rate capture for finding errors
Each Unit Includes
- Embedded software package for HD300MSO Series (HD300EMBA)
