BrandTech AK 500 / KF DN 25 VACUU PURE Inlet separator, bottom flask, 500 ml, for VACUUPURE Pumps

BrandTech Scientific 20751802

Order # 20751802

Mfg # 20751802

call-regular 800-828-1470
Save 10%
$770.00
$693.00
Loading...
Loading...
  • Overview

BrandTech Scientific 20751802

Order # 20751802 | Mfg # 20751802
Save 10%
$770.00
$693.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

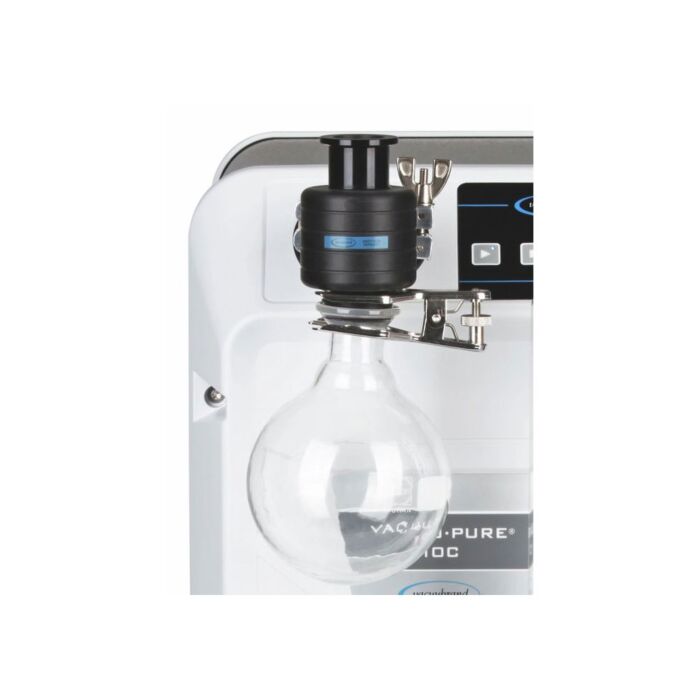

Inlet separator AK with round bottom flask 500 ml, with KF DN 25, for VACUUPURE

Inlet separator for VACUUPURE Screw pumps. Inlet with small flange KF DN 25 and hose nozzle DN 15 mm. Separators (AK) protect the vacuum pump at the inlet from particles and liquid droplets. Separators catchpot made of glas with good chemical resistance.

  • For VACUUPURE Screw Pumps
  • Direct mounting at the inlet, compact, and leak-tight
  • High conductance
  • Direct visibility of condensate through the coated round bottom flask
  • Easy draining of condensate

Technical data and graphs

Ambient Temp., Upper Limit (°C) 40 °C
Ambient Temp., Lower Limit (°C) 10 °C
Dimension L (mm) 106 mm
Dimension B (mm) 121 mm
Dimension H (mm) 275 mm
Outlet Connection Small flange KF DN 25
Inlet Connection Small flange KF DN 25
For VACUUBRAND Pumps ME 16C NT, MD 12C NT, MV 10C NT
Volume Catchpot 500 ml
Items Supplied Upgrade kit inlet separator with connections KF DN 25 with high chemical resistance
