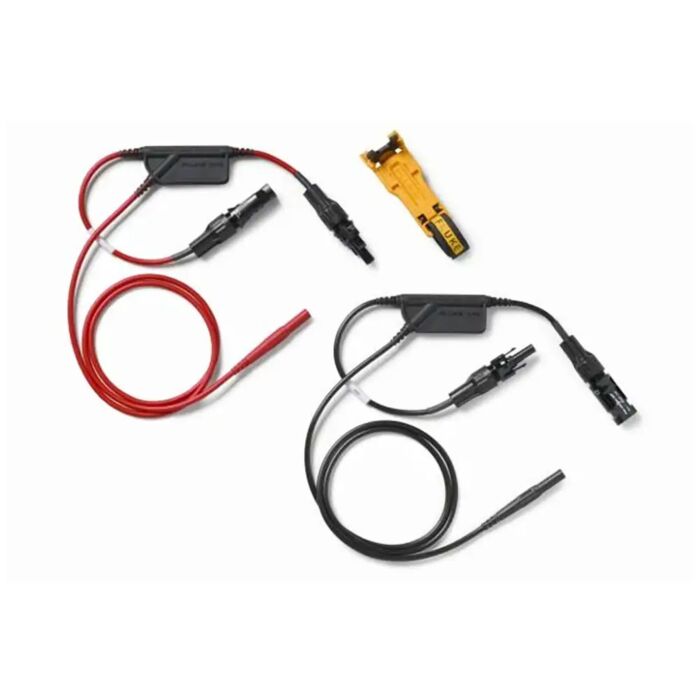

The Fluke TLPV2 MC4 Solar Power Clamp Test Lead Set is designed for professionals in solar energy in which accurate and reliable DC power measurements for photovoltaic (PV) systems are provided. Equipped with official Staubli MC4 connectors, the TLPV2 test leads ensure secure connections and optimal performance during testing, maintenance, and troubleshooting of solar installations.
This set includes red and black test leads specifically tailored for PV applications. The black lead features an MC4 (male) breakout to a 12 inch PV connector (female) and a 36 inch 4 mm sheathed banana plug. The red lead complements this with an MC4 (female) breakout to a 12 inch PV connector (male) and 36 inch 4 mm sheathed banana plug. These leads are compatible with solar clamp meters that accept 4 mm sheathed banana plugs, such as the Fluke 393 FC Solar Clamp Meter. The high compatibility makes these leads ideal for seamless integration with professional tools.
The TLPV2 set is essential for solar panel installation, inverter testing, and PV system diagnostics. This set allows users to monitor and assess PV circuits accurately during operation while also supporting energy audits and efficiency evaluations. With nickel-plated contacts, the leads offer durability and a longer insertion life with the performance maintained over time. Included with the leads is a PV unlocking tool which provides a convenient solution for disconnecting Staubli MC4 connectors safely.
Rated for CAT III 1500V, the TLPV2 ensures safe and compliant measurements for enhanced user confidence in demanding solar environments. These leads are specifically engineered for non-permanent installations and not intended for use under load disconnection.
For solar professionals, the TLPV2 MC4 Solar Power Clamp Test Lead Set offers high precision, safety, and compatibility, making it an indispensable addition to any solar technician's toolkit.
- Compatible with solar clamp meters that accept 4 mm sheathed banana plugs such as 393 FC Solar Clamp Meter
- Designed for professionals in solar energy environments
- Provides safe, precise, and accurate DC power measurements on photovoltaic (PV) systems
- Ensures secure connections and optimal performance during testing, maintenance, and troubleshooting of solar installations
- Essential for solar panel installation, inverter testing, and PV system diagnostics
- Allows users to monitor and assess PV circuits accurately during operation for energy audit and efficiency evaluation support
- Equipped with official Staubli MC4 connectors
- Nickel-plated contacts ensure long-lasting and reliable performance
- Red lead features MC4 (female) breakout to 12 in. PV connector (male) and 36 in. 4 mm sheathed banana plug
- Black lead features MC4 (male) breakout to 12 in. PV connector (female) and 36 in. 4 mm sheathed banana plug
- Includes PV unlocking tool for easy connector disconnection
- Not intended to use for permanent installation
Applications
- Solar PV Installation & Inspection
- Maintenance & Troubleshooting
- DC Power Measurement
- Connector Management
Each Unit Includes
- 1 - Test Lead, MC4 Female-to-Male PV Connector, Red, CAT III 1500V, 30A
- 1 - Test Lead, MC4 Male-to-Female PV Connector, Black, CAT III 1500V, 30A
- 1 - Solar PV Connector Unlocking Tool (TLPV-UTOOL)
