The RSA3000E-EMI is the EMI analysis software option for Rigol RSA3000E series spectrum analyzers.

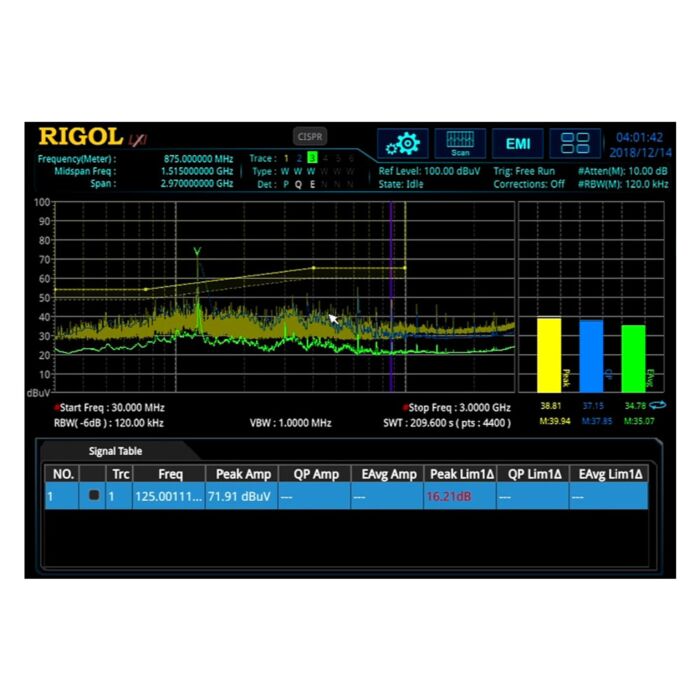

RIGOL's EMI Measurement Application provides a complete EMI PreCompliance Solution with scans, peak tests, limits, and multiple simultaneous CISPR detectors. With the EMI Measurement Mode engineers can compare, analyze, and report on EMI issues throughout their design process.
The EMI Measurement Application can be added to any RSA Family Real-Time Spectrum Analyzer.
|EMI Mode (Option RSA3000E-EMI)|
|EMI Resolution Bandwidth|
|Resolution Bandwidth (-3 dB)||100 Hz to 3 MHz, in 1-3-10 sequence|
|Resolution Bandwidth (-6 dB)||200 Hz, 9 kHz, 120 kHz and 1 MHz|
|Detector||pos-peak, neg-peak, average, quasi-peak, CISPR average, RMS average|
|EMI Key Feature|
|Key Feature||CISPR 16-1-1 detectors
CISPR 16-1-1 bandwidths
log and linear display
automatic limit testing
measure at marker
delta to limit
step and swept scans
