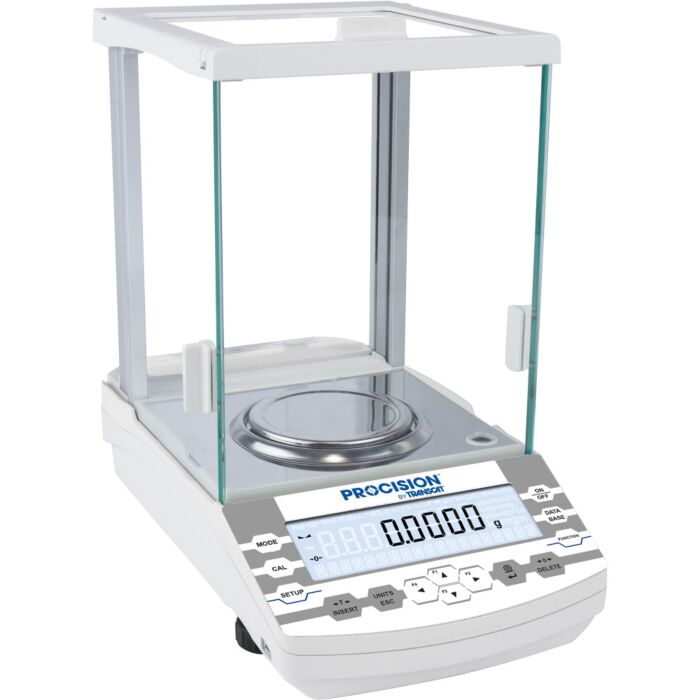

PROCISION TCL-224-C

Order # TCL-224-C

Mfg # TCL-224

800-828-1470

$2,750.00

Overview
Technical Resources
Specifications

Home

PROCISION TCL-224-C

PROCISION TCL-224-C

Order # TCL-224-C | Mfg # TCL-224

FREE Calibration Weight

PROCISION TCL-224-C

$2,750.00

Ships in 3-4 weeks

Log in for Member Pricing

Ships Free Over $100

The TCL Series balances are available as external calibration models, allowing you to pay only for the features you need. Designed to deliver reliable weighing results in your daily work. Each Unit comes with a 5 year Warranty and Calibration certificate.

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

Max Capacity: 220g
Readability: 0.1 mg
Repeatability (5% Max): 0.07 mg
Repeatability (Max): 0.08mg
Linearity: +/-0.2 mg
Stabilization Time: 2 s
Unit Dimensions: 351 x 205.5 x 348 mm (13.8 x 8.1 x 13.7in)
Weighing Pan Dimensions_: 100mm
5-year warranty_
Calibration certificate included
Externally calibrating- requires purchase of a E2 200g calibration weight_
Sturdy, aluminum base_
Leveling bubble located in front of chamber for easy viewing_
USB (A & B) and RS-232 Communication Interfaces_
IR Proximity Sensor for hands-free operation_
Equipped with a Kensington Lock to secure device from theft

Technical Resources

Procision TCL Series Datasheet
Procision TCL Series User Manual
Procision TCL Series Quick Start Guide

Specifications

Analytical Balances

	TCL-64-C	TCL-164-C	TCL-224-C	TCL-314-C
Maximum Capacity	62 g	160 g	220 g	310 g
Readability [d]	0.1 mg	0.1 mg	0.1 mg	0.1 mg
Repeatability (5% Max)	0.06 mg	0.07 mg	0.07 mg	0.08 mg
Repeatability (Max)	0.08 mg	0.08 mg	0.08 mg	0.12 mg
Linearity	0.2 mg	+/- 0.2 mg	+/- 0.2 mg	+/- 0.3 mg
Adjustment	External
Stabilization Time	2 s	2 s	2 s	2.5 s
Pan Size	100 mm (3.9 in)
Unit Dimensions	351 _ 205.5 _ 348 mm (13.8 x 8.1 x 13.7in)
Communication ports	RS232, 2 x USB-A, USB-B

Milligram Balances

	TCL-363-C	TCL-603-C	TCL-1003-C
Maximum Capacity	360 g	600 g	1000 g
Readability [d]	1 mg	1 mg	1 mg
Repeatability (5% Max)	0.5 mg	0.5 mg	0.5 mg
Repeatability (Max)	1 mg	1 mg	1.5 mg
Linearity	+/- 2 mg	+/- 2 mg	+/- 3 mg
Adjustment	External
Stabilization Time	2 s
Pan Size	128 x 128 mm (5.7 x 5.7 in)
Unit Dimensions	333 _ 206 _ 100 mm (13.1 x 8.1 x 3.9in)
Communication ports	2 x RS232, USB (A and B)

Toploading Balances

	TCL-2102-C	TCL-4502-C	TCL-6002-C
Maximum Capacity	2100 g	4500 g	6000 g
Readability [d]	0.01 g	0.01 g	0.01 g
Repeatability (5% Max)	0.005 g	0.005 g	0.005 g
Repeatability (Max)	0.008 g	0.008 g	0.008 g
Linearity	+/- 0.02 g	+/- 0.03 g	+/- 0.03 g
Adjustment	External
Stabilization Time	2 s
Pan Size	195 x 195 mm (7.7 x 7.7in)
Unit Dimensions	333 _ 206 _ 100 mm (13.1 x 8.1 x 3.9in)
Communication ports	2 x RS232, USB (A and B)
