PROCISION TCL-1003-C

Order # TCL-1003-C

Mfg # TCL-1003

800-828-1470

Save 32%

$2,478.00

$1,685.04

Overview
Technical Resources
Specifications
Accessories

Home

PROCISION TCL-1003-C

PROCISION TCL-1003-C

Order # TCL-1003-C | Mfg # TCL-1003

FREE Calibration Weight

PROCISION TCL-1003-C

Save 32%

$2,478.00

$1,685.04

Ships in 3-4 weeks

Log in for Member Pricing

Ships Free Over $100

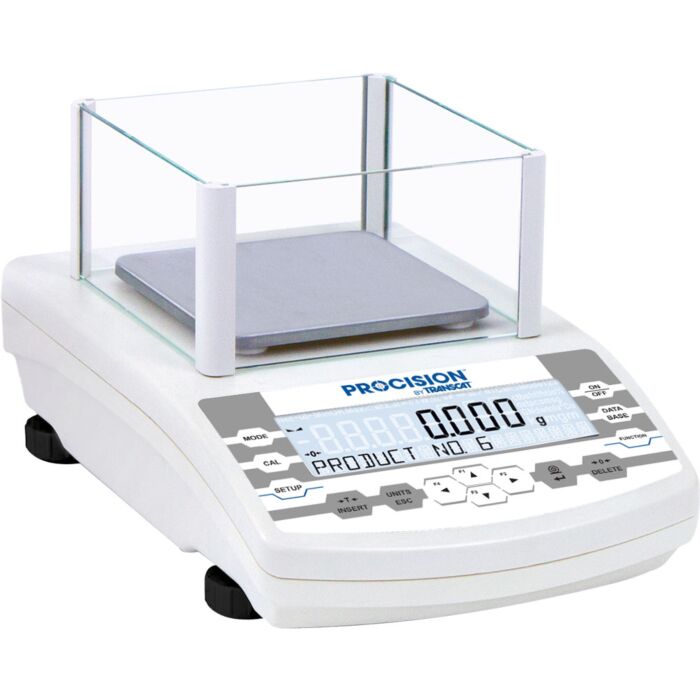

The TCL Series balances are available as external calibration models, allowing you to pay only for the features you need. Designed to deliver reliable weighing results in your daily work. Each Unit comes with a 5 year Warranty and Calibration certificate.

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

Max Capacity: 1000g
Readability: 1 mg
Repeatability (5% Max): 0.05 mg
Repeatability (Max): 1.5mg
Linearity: +/-3 mg
Stabilization Time: 2 s
Unit Dimensions: 333 x 206 x 100 mm (13.1 x 8.1 x 3.9in)
Weighing Pan Dimensions: 128 x 128mm
5-year warranty_
Calibration certificate included
Externally calibrating- requires purchase of a F1 1000g calibration weight_
Removable glass draft shield to provide additional environmental protection_
USB (A&B) and RS-232 Communication Interfaces_
Large, backlit LCD display

Technical Resources

Procision TCL Series Datasheet
Procision TCL Series User Manual
Procision TCL Series Quick Start Guide

Specifications

Analytical Balances

	TCL-64-C	TCL-164-C	TCL-224-C	TCL-314-C
Maximum Capacity	62 g	160 g	220 g	310 g
Readability [d]	0.1 mg	0.1 mg	0.1 mg	0.1 mg
Repeatability (5% Max)	0.06 mg	0.07 mg	0.07 mg	0.08 mg
Repeatability (Max)	0.08 mg	0.08 mg	0.08 mg	0.12 mg
Linearity	0.2 mg	+/- 0.2 mg	+/- 0.2 mg	+/- 0.3 mg
Adjustment	External
Stabilization Time	2 s	2 s	2 s	2.5 s
Pan Size	100 mm (3.9 in)
Unit Dimensions	351 _ 205.5 _ 348 mm (13.8 x 8.1 x 13.7in)
Communication ports	RS232, 2 x USB-A, USB-B

Milligram Balances

	TCL-363-C	TCL-603-C	TCL-1003-C
Maximum Capacity	360 g	600 g	1000 g
Readability [d]	1 mg	1 mg	1 mg
Repeatability (5% Max)	0.5 mg	0.5 mg	0.5 mg
Repeatability (Max)	1 mg	1 mg	1.5 mg
Linearity	+/- 2 mg	+/- 2 mg	+/- 3 mg
Adjustment	External
Stabilization Time	2 s
Pan Size	128 x 128 mm (5.7 x 5.7 in)
Unit Dimensions	333 _ 206 _ 100 mm (13.1 x 8.1 x 3.9in)
Communication ports	2 x RS232, USB (A and B)

Toploading Balances

	TCL-2102-C	TCL-4502-C	TCL-6002-C
Maximum Capacity	2100 g	4500 g	6000 g
Readability [d]	0.01 g	0.01 g	0.01 g
Repeatability (5% Max)	0.005 g	0.005 g	0.005 g
Repeatability (Max)	0.008 g	0.008 g	0.008 g
Linearity	+/- 0.02 g	+/- 0.03 g	+/- 0.03 g
Adjustment	External
Stabilization Time	2 s
Pan Size	195 x 195 mm (7.7 x 7.7in)
Unit Dimensions	333 _ 206 _ 100 mm (13.1 x 8.1 x 3.9in)
Communication ports	2 x RS232, USB (A and B)

PROCISION TCL-1003-C Accessories

Select

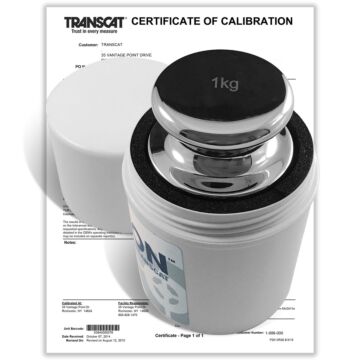

PROCISION 1kg Weight, 316L SS, OIML F1 Accuracy +/- 5.0 mg, with Calibration Certificate

PROCISION OIML F1 - 1kg, 316L SS with Calibration

$320.00
