Operation and Performance
Fluid Types
Liquids: acoustically conductive fluids, including most clean liquids and many liquids with small amounts of entrained solids or gas bubbles

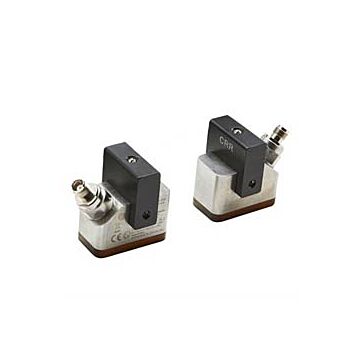

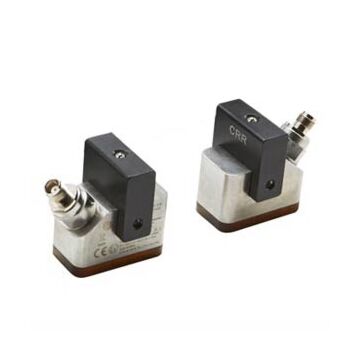

Flow Measurement
Patented Correlation Transit-TimeTM mode
Pipe Sizes
Standard: 0.5 to 24 in. (15 to 600 mm)
Optional: up to 300 in. (7500 mm) available upon request

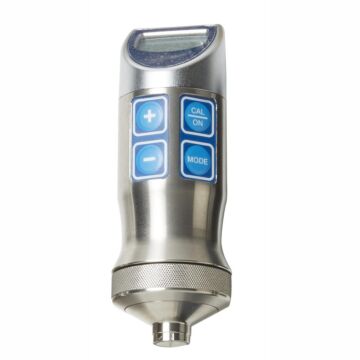

Pipe Wall Thickness
Up to 3 in. (76.2 mm)
Pipe Material
All metals and most plastics
Accuracy
- ±1% of reading (2in/50mm or greater pipe sizes)
- ±2% of reading (0.5in/15mm to <2in/50mm pipe sizes)
Installation assumes a fully developed, symmetrical flow profile (typically 10 pipe diameters upstream and 5 pipe diameters downstream of straight pipe run). Final installation accuracy is a function of multiple factors including fluid, temperature range, pipe centricity among other factors.
Repeatability
±0.2% of reading
Range (Bidirectional)
0.1 to 40 ft/s (0.03 to 12.19 m/s)
Response Time
Up to 2 Hz
Measurement Parameters
Velocity, Volume, Mass, Energy, Total Flow
Channels
1 or 2 channels
|
|
Flow Transmitter
Enclosure
IP65 rating
Specifications
- Weight: 3 lb (1.4 kg)
- Size (h x w x md): 7.9 x 4.3 x 1.5 in. (200 x 109 x 38 mm)

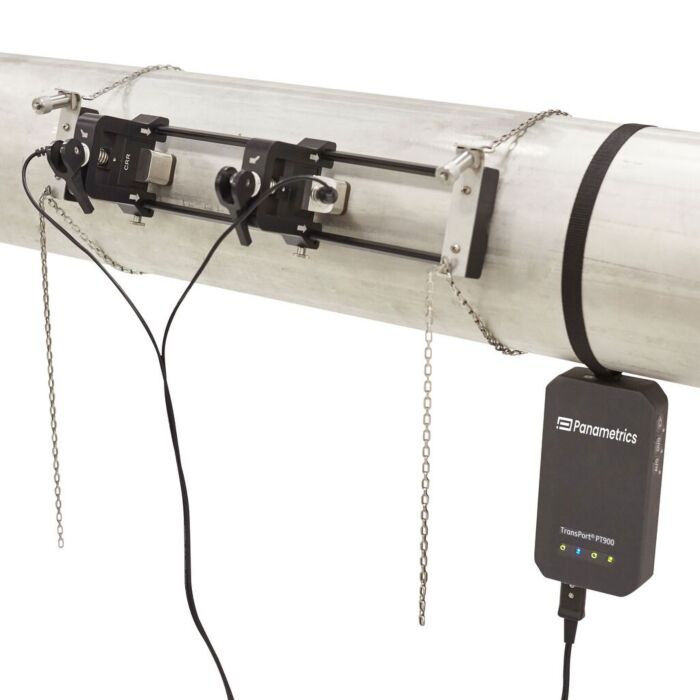

- Mounting: Soft strap around pipe or magnetic clamp
Analog Inputs
4-20 mA (qty 2)
Analog Output
4-20 mA (qty 1)
Digital Output
Pulse (Totalizer), Frequency, Alarm (qty 1)
Digital Communication
- Modbus via RS485 Port
- Bluetooth Wireless
- Micro-USB Port
Battery

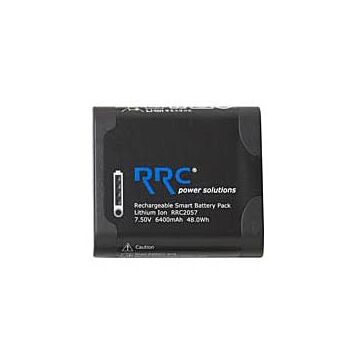

- Type: Lithium Ion (high-energy, rechargeable)
- Life (continuous operation): 18-20 hours
- Life (power saver mode): >4 days

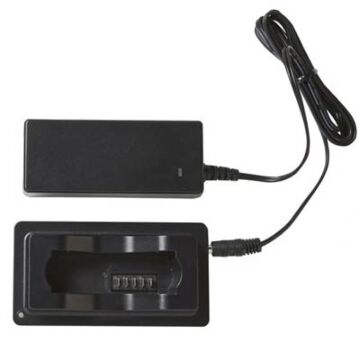

- Charger: 100 to 240 VAC (50/60/Hz)
- Charging Time: Up to 3 hours (from 0% to 100%)
Operating Temperature
-20 to 55°C (-4 to 131°F)
Electronics Classifications
- CE (EMC Directive) IEC 61326-1:2013, IEC 61326-2-3:2013, LVD 2006/95/EC, EN 61010-1 2010
- ANSI/UL STD. 61010-1, CAN/CSA STD. C22.2 NO. 61010-1
- WEEE Compliant (Directive 2012/19/EU)
- RoHS Compliant (Directive 2002/95/EC)
|
User Interface
Display
Tablet with Android operating system (version 4.4 or greater), LCD capacitive touchscreen, 800 x 1280 resolution
Dimensions
- 7 in. Tablet: 7.75 x 4.75 x 0.75 in. (196 x 120 x 19 mm) typical
- 8 in. Tablet: 8.75 x 6.00 x 0.75 in. (222 x 152 x 19 mm) typical
Battery Life
>12 hours of continuous use
Battery Charger
100 to 250 VAC (50/60 Hz)
Operating Temperature
0 to 50°C (32 to 122°F)
Communication with Flow Transmitter
Bluetooth
|
|
Software Application (PT900 APP)
Intuitive, Swipe Screen Interface
- Colorful, icon-driven design
- Tutorial-style programming
- Site parameter presets
- Multiple display options
- Extensive online help
Languages
English, Arabic, Chinese (Simplified), Dutch, French, German, Italian, Japanese, Korean, Portuguese, Russian, Spanish, Swedish, Turkish
Installing the PT900 APP
Obtain the PT900 APP from:
- File provided on SD card
- Free download from Google Play
- Free download from GE website
|
