Pacific Power 134350 USED FOR SALE

Product Highlights

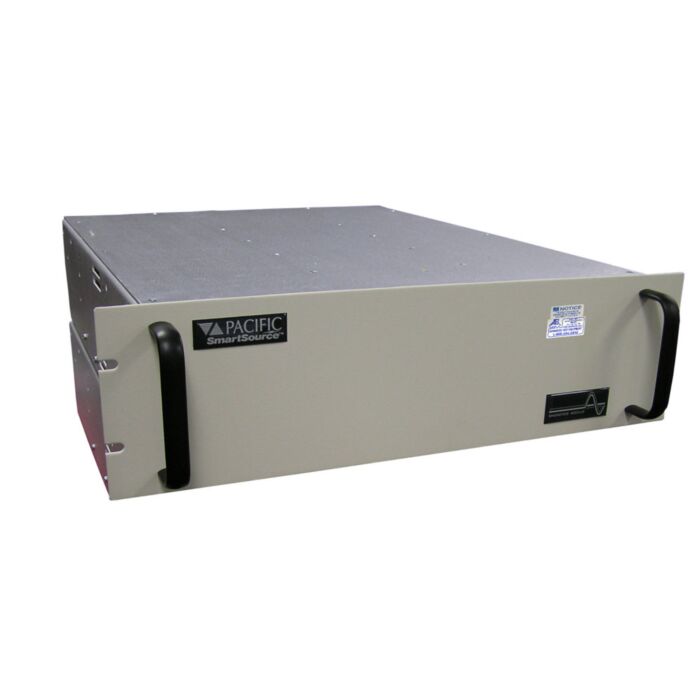

Pacific Power 134350 Magnetics Module Single Phase Transformer. Increases output voltage of AC Power Supplies by a factor of X2.5. 0-125VAC input. 0-300VAC output. 45-5000 Hz. 20A Max Input. 8.3A Max Output. 2.5 kVA max. Mod M99403

Pacific Power Source ASX and AMX Series Power Sources can be equipped with output transformers to provide an alternate output voltage range. With the Pacific Power Source 13435, the election of direct or transformer coupled range is performed by the controller via front panel or bus command. The standard frequency range for transformer coupled outputs is 45 to 1,200 Hz and 45 to 5,000 Hz. Standard output ratios for the Pacific Power 134350 AMX Magnetics Module Transformer are 1.5:1, 2.0:1, and 2.5:1. Transformer outputs are supplied internally or externally via a Magnetics Module.
