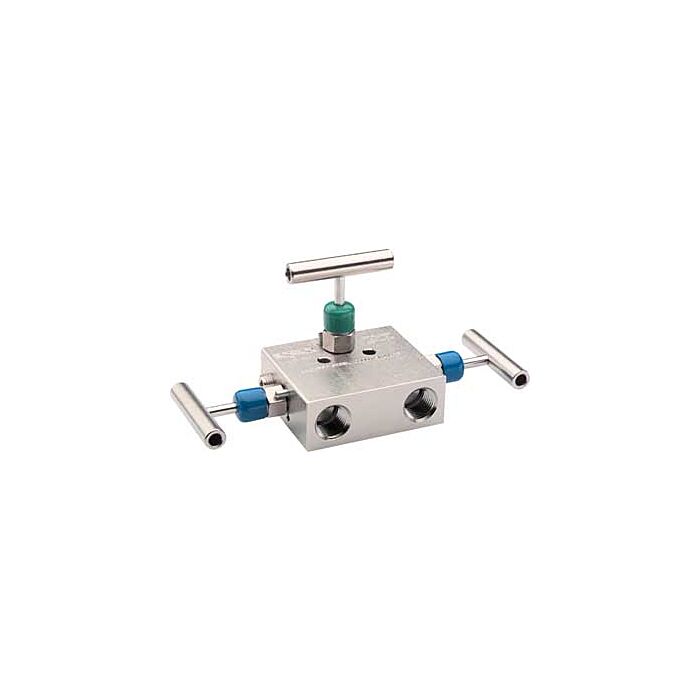

NOSHOK 3110-MFS
3 Valve Manifold,Soft Seat Flange x 1/2"NPTF,316SS
Order #: 3110-MFS
Mfg #: 3110-MFS
Special Price
$532.80
Regular Price
$555.00
NOSHOK 3110-MFS
3 Valve Manifold,Soft Seat Flange x 1/2"NPTF,316SS
Order #: 3110-MFS
Mfg #: 3110-MFS
Special Price
$532.80
Regular Price
$555.00
Availability: Ships in 3-4 weeks
Product Highlights
- Designed for use with differential pressure transmitters incorporating two isolation valves and an equalizing valve in differential pressure measurement
- Available in block, single flange, or double flange connection for remote or direct installation
- All manifold bodies are machined from cold drawn extrusion allowing NOSHOK to hold tighter tolerances
- 100% helium leak tested to 1 x 10-4 ml/s for guaranteed performance and reliability
- 3010 Series hard seat valves have 10,000 psi pressure rating (@ 200°F maximum)
- 3110 Series soft seat valves have 6,000 psi pressure rating (@ 200°F maximum)
- 3110 Series soft seat valves also feature a replaceable Delrin® seat, and straight through porting for bi-directional, high capacity flow and easy roddable cleaning
- Blow-out proof stem provides a secondary stem seal in the full open position
- Viton® o-ring seal and Teflon® back-up ring below the stem threads to protect from corrosion and galling
- All stem threads are 316 stainless steel
- All stem threads are rolled for strength and ease of operation
- One-piece bonnet with a metal-to-metal seal to the valve body below the bonnet threads
- Bonnet lock pin to prevent accidental loosening
- Vinyl bonnet and stem dust cap
- 0.187 inch orifice size
