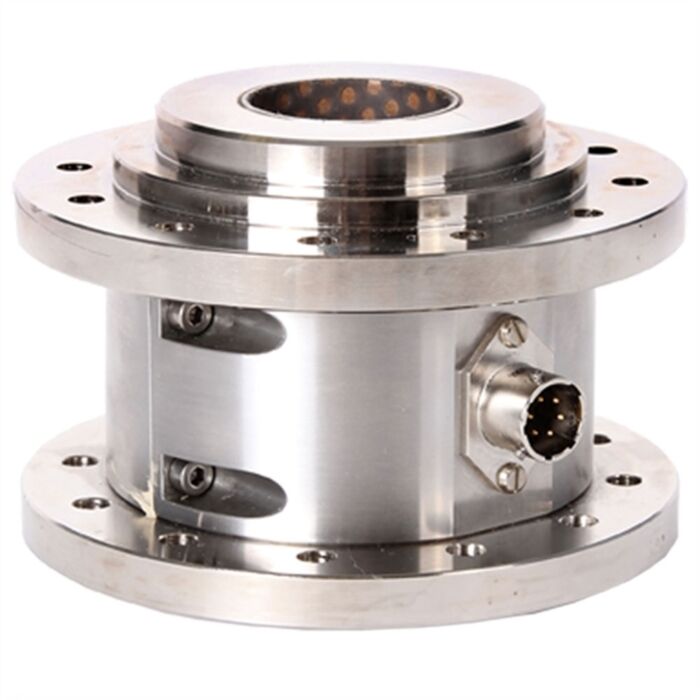

Norbar Torque Tools 50700.LOG

Order # 50700.LOG | Mfg # 50700.LOG
Save 4%
$5,504.26
$5,284.08
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

Product Highlights

  • Designed to ignore non torsional forces.
  • Robust heat treated alloy steel torsion tube design.
  • 'SMART' transducers have a built in memory circuit which contains essential information about the transducer. This information can be read by Norbar's 'Pro-Log' instrument meaning that when the transducer is connected, it is immediately recognised and ready for use. When ordering for a Pro-Log, use part code suffix '.LOG' (eg. 50659.LOG) if you require a torque units calibration certificate.
  • 'SMART' transducers can also be used with many instruments not of Norbar manufacture. However, these will operate as normal ratio calibrated (mV/V) transducers - the 'SMART' data will not be read. For non Norbar instruments or for when a mV/V certificate is required, use part code suffix '.IND'.
  • Weight: 4.7 Kg
  • Type: Standard
  • Temp Range Operating: -10°C to +50°C
  • Temp Range Storage: -20°C to +70°C
  • Thermal Effect On Span: < +/- 0.03%/°C
  • Thermal Effect On Zero: < +/- 0.01%/°C
  • Max Torsion Of Capacity: 150% of rated torque
  • Torsional Deflection: < 1°
  • Fatigue: > 10 exp 7 cycles
