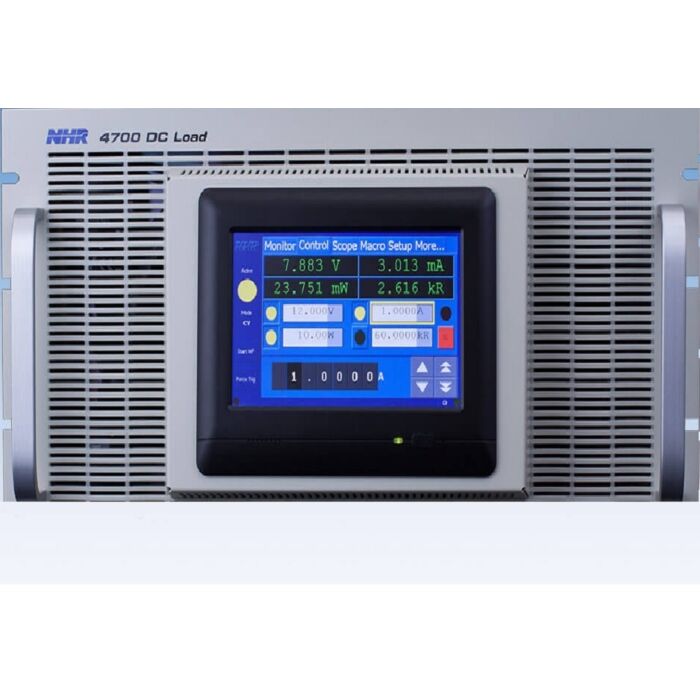

NH Research 4700-2-TP for Rent, High-Current DC Electronic Load: 2kW, 400A, 120V

Order # 4700-2-TP-RENT2 | Mfg # 4700-2-TP

Request a Rental Quote









Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

Overview

DC Load – 4700 Series

  • 8 sizes – 1 to 36kW @ 120 or 600V
  • High-resolution waveform capture for analysis of dynamic transients
  • 18 built-in, precision voltage, current, power and timing measurements that eliminate additional dedicated measurement instruments
  • Isolated digital inputs and outputs for test fixture support
  • PC/LAN control using LabVIEW & IVI drivers
  • Optional touch-panel user interface

There are 2-types of programmable dc electronic loads in this general-purpose, medium-to-high-power electronic load family. The 4700 is a relatively low-voltage DC load (120V) with high-current capability. The high-voltage DC load (4760 Series) is a high-voltage electronic load (600V).

The High-Current DC Electronic Load (4700 Series) is used in a wide variety of applications that involve automated testing of power conversion device outputs to simulate real-world loading conditions. Such devices include DC power supplies, telecom rectifiers, and traction batteries.

Technical Resources

NH Research 4700 Series High-Current DC Electronic Load Datasheet
