Omega Engineering RDXL4SD
4-Channel Datalogger w/2GB SD Card

Order #: RDXL4SD

Mfg #: RDXL4SD

Questions about availability or need help? Contact Us:

(800) 633-0561
$495.07

Omega Engineering RDXL4SD

4-Channel Datalogger w/2GB SD Card

Order #: RDXL4SD

Mfg #: RDXL4SD

$495.07

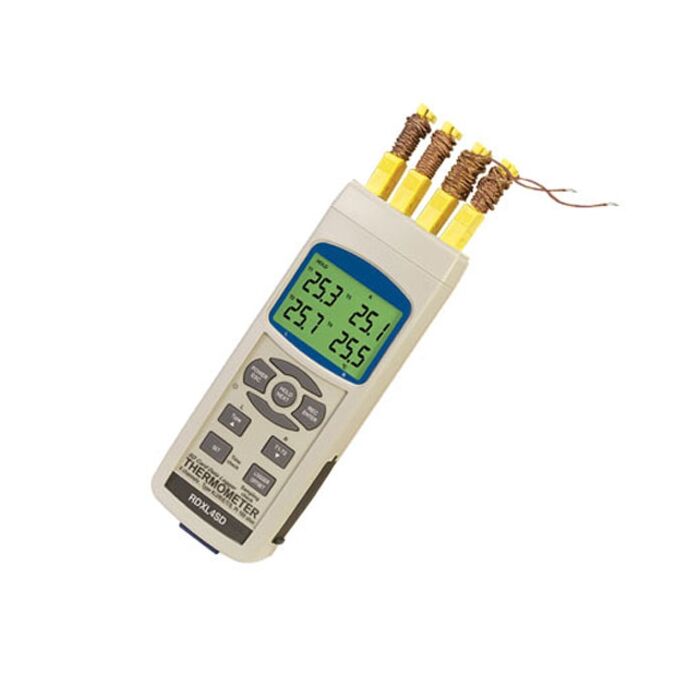

The portable RDXL4SD model is a handheld thermometer/data logger with backlight display and built-in analysis functions. The data loggers are powered by an internal battery and are capable of sampling, processing and displaying measurements without being connected to a computer.
Availability: Call for availability

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Product Highlights

  • 4-channel digital T/C or RTD input thermometer with 2 GB SD card
  • SD Card, Real-Time Data Logger
  • Input Signals: T/C K, J, T, E, R/S, and RTD Pt100 Ω Measurement
  • Display All Input Channels Simultaneously
  • Data Hold, Record Max and Min Reading
  • RS232/USB PC Computer Interface
  • LCD with Green Light Backlight, Easy Reading
  • SD Card Capacity: 1 to 16 GB
  • Embedded Microcontroller: Custom one-chip LSI device
  • LCD Display: 82 x 61 mm (3.23 x 2.40") with green color backlight
  • 4 Channels: T1, T2, T3, T4, T1-T2
  • Sensor: Type J, K, T, E, R/S thermocouple probe Pt100 Ω RTD (European curve) for RDXL4SD model only
  • Resolution: 0.1/1°C or °F
  • Sampling Time: 1 to 3600 seconds
  • Memory Card: SD memory card 1 to 16 GB
  • Memory Recall: Max and min value
  • Sampling Time of Display: Approx 1 second
  • Data Output: RS232/USB PC computer interface
  • Power Off: Auto shut off saves battery life or manual off by push button
  • Operating Temperature: 0 to 50°C (32 to 122°F)
  • Operating Humidity: Less than 85% RH
  • Power Supply: Alkaline or heavy-duty DC 1.5V battery (UM3, AA) x 6 "AA"
  • Power Current: Approx DC 30 mA
  • Weight: 489 g (1.08 lb)
  • Dimensions: 177 H x 68 W x 45 mm D (7 x 2.7 x 1.9")
