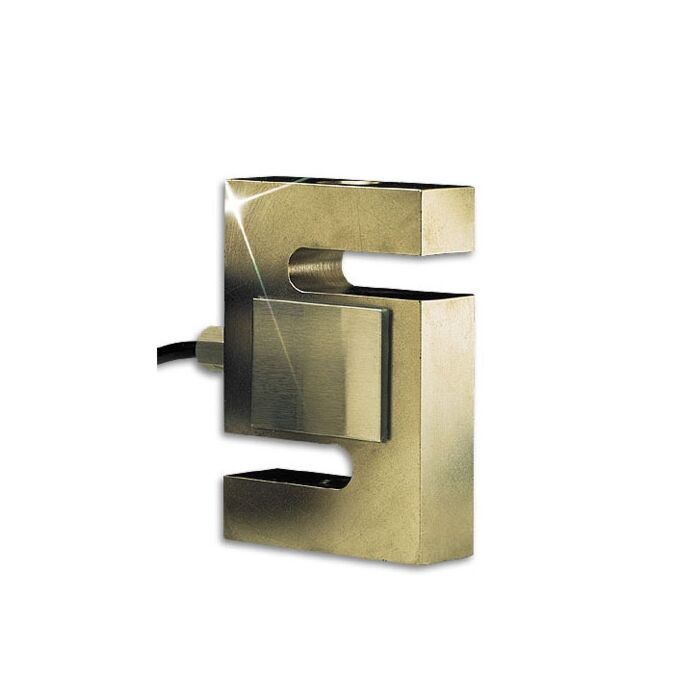

Omega Engineering LCCA-1K

Load Cell,1000 lbf,3mV/V Output 20ft.Cable

Order #: LCCA-1K

Mfg #: LCCA-1K

Questions about availability or need help? Contact Us:

(800) 633-0561
Call for price
Call for price

Omega Engineering LCCA-1K

Load Cell,1000 lbf,3mV/V Output 20ft.Cable

Order #: LCCA-1K

Mfg #: LCCA-1K

Call for price
Call for price
Availability: Ships in 3-4 weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • S Beam load cell with 1,000 lb capacity
  • Environmentally Protected for Washdown Applications
  • Corrosion Resistant
  • Calibration Certificate Supplied
  • 0.25% Interchangeable
  • Rated Output: 3mV/V ±0.0075mV/V actual output supplied with each load cell)
  • Excitation: 10 Vdc (15 Vdc maximum)
  • Accuracy: 0.037% Full Scale
  • Linearity: 0.03% FS
  • Hysteresis: 0.02% FS
  • Repeatability: 0.01% FS
  • Zero Balance: 1% FS
  • Creep in 20 min: 0.03% FS
  • Operating Temperature: 0 to 150°F
  • Compensated Temperature: 0 to 150°F
  • Thermal effects: Zero - 0.0015% FS/°F Span - 0.0008% RDG/°F
  • Maximum Load: Safe, 150%; Ultimate, 300%
  • Bridge Resistance: 350 Ohms nominal
  • Full Scale Deflection: 0.010 in to 0.020 in
  • Construction: Nickel Plated Carbon Steel
  • Cable: 20 ft 4-conductor shielded 22-gage wire
