Monarch Instrument 6220-034

Vibration Strobe CSI Kit 115/230V for model 2130 only

Order #: 6220-034

Mfg #: 6220-034

Questions about availability or need help? Contact Us:

(800) 633-0561
$2,650.00

Monarch Instrument 6220-034

Vibration Strobe CSI Kit 115/230V for model 2130 only

Order #: 6220-034

Mfg #: 6220-034

$2,650.00
Availability: Ships in 2-3 weeks
Available Promotions

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Flash rates from 30 to 50,000 flashes per minute, adjustable in 1 FPM increments. The all digital, crystal controlled microprocessor keeps readings rock steady.
  • Selectable tracking filter allows for solid phase reading.
  • Individual in and output TTL jacks for provides signal to remote data collector from accelerometer.
  • Relative Phase Adjustment is user selectable allows reference mark to positioned at a convenient visual location.
  • Backlit alphanumeric LCD display shows flash rate in flashes per minute.
  • Flash Range 30-50,000 FPM (Flashes/Minute) 0.5-830 FPS (Flashes/Sec. or Hz)
  • Accuracy ±0.002% of Setting ± least significant digit
  • Digital Adjustment Knob 36 detents per revolution and blinking decade selection
  • Flash Rate Resolution (Internal Triggering) 0.01 to 1.0 FPM (Menu Selectable)
  • Indicators Battery Level, On Target, Time, Auto, Alt, Tach, Lock, and EXT icons
  • Operating Time 2 hours typical @1800 FPM (operates continuously on AC power)
  • Phase Delay - Degrees 0.1 to 359.9 degrees
  • Tracking Filter Selectable Wide and Narrow Bandwidths. Filtoer may not lock below 100 FPM
  • Time Delay 0.01 to 1000 msec.
  • Virtual RPM (Slow Motion) 0-200 VRPM
  • Flash Energy (Typical) 230 mJoule up to 3450 FPM
  • Flash Duration (Typical) 8-20 microseconds
  • Average Power - Watts 11Watts @ 3000 FPM; >13Watts @ 3450 FPM
  • Tachometer Mode 5-250,000 RPM from external trigger
  • External Input (1/8" phone plug) Input Pulse - 0.5 usec min, TTL to 24V max (1/8" phone plug)
  • Trigger Output/Remote Sync (Typical) 3.3V TTL Compatible 40 usec pulse-Positive/Negative
  • Power Internal rechargeable NiMH batteries
  • Weight 1.9Lbs. (0.852 kg) including batteries

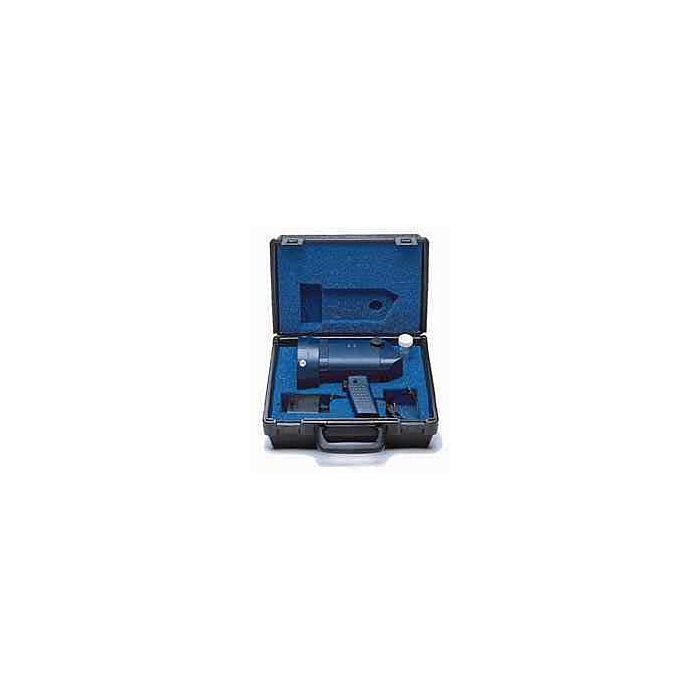

Each Unit Includes

  • Vibration Stroboscope - 30-50,000 FPM
  • PSC-pbxU power supply/recharger
  • 115/230 Vac
  • Spare lamp
  • CSI 2130 data collector interface cable
  • CA-4046-6 accelerometer cable
  • Latching carrying case
