Monarch Instrument 6205-052
Stroboscope Kit
Order #: 6205-052
Mfg #: 6205-052
$788.00
Availability: Ships in 3-4 weeks
Product Highlights
- PALM STROBE x has a removable, re-chargeable battery pack.
- Unique joy-stick tuning button for single hand operation
- Light weight
- Flash rates to 12,500 FPM
- Tachometer mode from remote sensors
- TTL compatible input/output
- N.I.S.T. Calibration included
- Display 6 digit alphanumeric backlit LCD
- Light Power 7.9 watts @ 6000 FPM, 150 mJoules up to 3100 FPM
- Flash Duration 10 - 30 µseconds typical
- Flash Lamp Life 100 million flashes typical
- Range: 5 - 250,000 RPM
- Accuracy: ± 0.01% or 0.1 RPM
- Updatete Rate: 1 second typical
- External Input: 0 to 5 volt TTL compatible (+12V pk max) 20 µsec min pulse width. Positive edge triggered
- Run Time 2 hour typical at 1800 FPM with fully charged batteries.
- Adjustment Four Quadrant Pressure Sensitive Joystick Button adjusts flash rate, x2 and ÷2
- Output Pulse 250 µsec positive pulse, 5 Vdc typical
- Power Removable NiMH Rechargeable Battery Pack with integral charge control electronics
- Weight 1.2 lbs (0.55 kg) including battery
- Strobe Dimensions 3.04 x 9.34" (77 x 237mm)

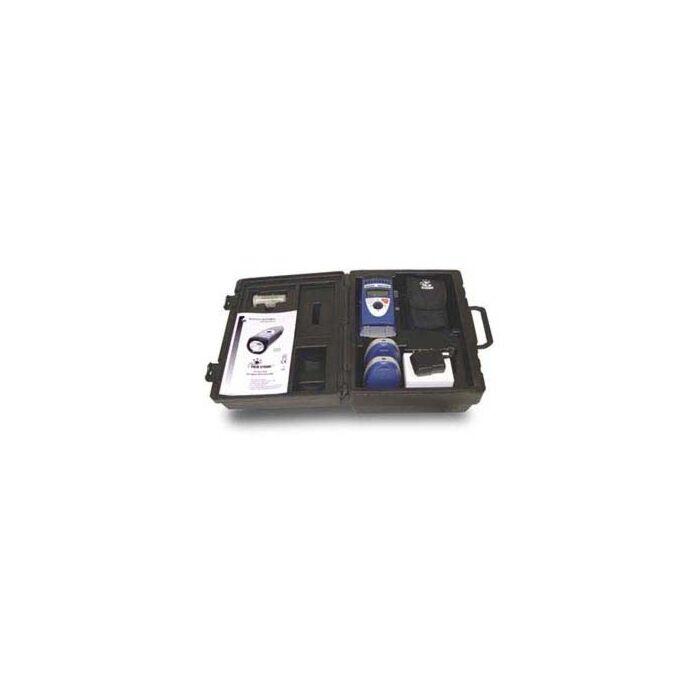

Each Unit Includes
- Palm Strobe x
- Battery
- PSC-2U 115/230 Vac Recharger
- Spare Lamps
- Latching Carrying Case
