Megger MIT430/2

50V, 100V, 250V, 500V & 1000V Insulation Tester + Bluetooth

Order #: 1006-746

Mfg #: 1006-746

Questions about availability or need help? Contact Us:

(800) 633-0561
$935.00

Megger MIT430/2

50V, 100V, 250V, 500V & 1000V Insulation Tester + Bluetooth

Order #: 1006-746

Mfg #: 1006-746

$935.00
Be sure to Login to transcat.com for preferred member pricing.
Availability: Item ships in about 2-3 Weeks
Available Promotions

Choose Your Options:

Add Accredited Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate?

Already have this this item and need calibration? Request a calibration quote

This product is available for shipping to the United States and Canada only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

MIT430/2 - 50 V, 100 V, 250 V, 500 V and 1000 V +Polarisation Index, Dielectric Absorption Ratio, Variable Test Voltage and Bluetooth download.

The MIT400 mk2 series insulation and continuity testers are designed not just for Electrical and Industrial, but with an exceptionally wide range of applications from electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, maintenance etc.

Insulation testing has been enhanced with feedback controlled test voltages to limit over-voltage to 2%, rather than the industry standard 10-20%.

A variable range has been added to allow any intermediate voltage from 50 V to 1000 V in 10 V steps, where application specific test voltages are required that do not appear in the standard ranges.

Continuity testing is now significantly faster, and a single auto-ranging 0.01 Ω to 1.0 MΩ function replaces the “ohms” and “kOhms” ranges. Retained are the 200 mA and 20 mA test options.

Replacing the original MIT400 instruments the new units feature a redesigned case, back-stand, and 6 cell battery compartment with separate fuse access. All instruments are over-moulded for increased protection and achieve an IP54 weatherproof rating.

  • Designed for Electrical and Industrial testing
  • Insulation testing from 50 to 1000 V
  • 2% test voltage accuracy
  • Stabilized insulation test voltage
  • Polarization Index (PI) and Dielectric Absorption Ratio (DAR) functions
  • True RMS voltage measurement to 600 V ac or dc with resolution from 0.1 mV
  • Single range, faster continuity testing from 0.01 Ω to 1 MΩ
  • Frequency measurement from 15 to 450 Hz
  • Capacitance measurement from 1 nF to 10 μF
  • Automatically test to a time limit
  • Stores over 1000 test results with onboard storage
  • CAT IV 600 V / CAT III 1000 V
  • IP54 rated providing a weatherproof case to reduce the chances of water ingress
  • Live circuit detection and protection
  • Auto reverse polarity
  • PASS/FAIL indication on limit alarms

Each Unit Includes

  • Red/Black Silicone test leads with Probes + Clips
  • SP5 remote switch probe (not MIT400/2)
  • Owners information CD
  • Batteries 6 x AA Alkaline
  • Hard carry case

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

  1. Megger 1004-183 DC Car Charger 2.5mm Pin
    Megger 1004-183
    DC Car Charger 2.5mm Pin

    Order #: 1004-183

    Mfg #: 1004-183

    Availability: Item ships in about Ships in 2-3 weeks
    $45.00
  2. Megger 1002-015
    Megger 1002-015
    Fused Test Lead Set for Model CFL510G

    Order #: 1002-015

    Mfg #: 1002-015

    Availability: Item ships in about 2-3 Weeks
    $205.00
  3. Megger 1007-157
    Megger 1007-157
    SP5 Remote Switched Probe Accessory

    Order #: 1007-157

    Mfg #: 1007-157

    Availability:
    Out of stock
    $165.00

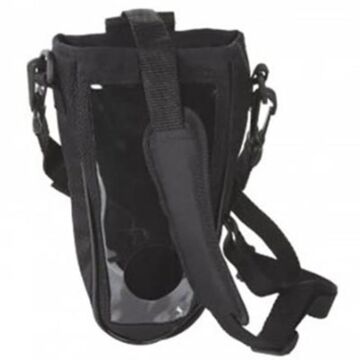

  4. Megger 1007-887 Test & Carry Pouch for MIT400/2 Series
