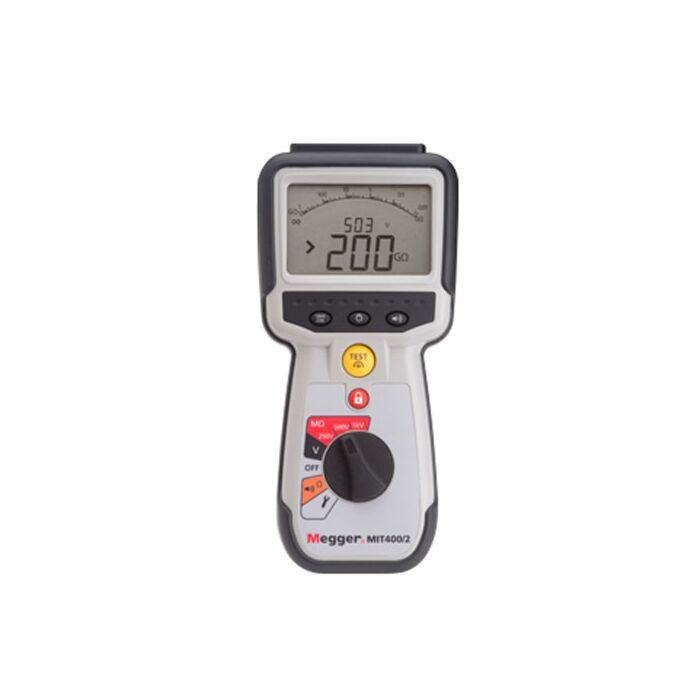

Megger MIT400-2 Series Industrial Insulation Tester

Megger MIT400-2 Industrial Insulation Tester

Order #: Megger MIT400-2 Insulation Tester

Questions about availability or need help? Contact Us:

(800) 633-0561

Megger MIT400-2 Series Industrial Insulation Tester

Megger MIT400-2 Industrial Insulation Tester

Order #: Megger MIT400-2 Insulation Tester

The MIT400/2 series insulation and continuity testers are designed not just for Electrical and Industrial, but with an exceptionally wide range of applications from electrical installations, cable testing, motor testing, automotive, ESD, panel building, avionics, maintenance etc.

Why Buy the Megger MIT400-2 Series from Transcat? Calibration. Selection. Price.

Transcat is a leading supplier of Megger Instruments, and can offer accredited calibrations on new orders. Check out our ordering guide to ensure that we provide you with the very best product for your application. To request more information, technical support, get a quote, or place an order, feel free to call us, chat us, request a quote, or add to cart!







Insulation testing has been enhanced with feedback controlled test voltages to limit over-voltage to 2%, rather than the industry standard 10-20%.

A variable range has been added to allow any intermediate voltage from 50 V to 1000 V in 10 V steps, where application-specific test voltages are required that do not appear in the standard ranges.

Continuity testing is now significantly faster, and a single auto-ranging 0.01 Ω to 1.0 MΩ function replaces the “ohms” and “kOhms” ranges. Retained are the 200 mA and 20 mA test options.

Replacing the original MIT400 instruments the new units feature a redesigned case, back-stand, and 6 cell battery compartment with separate fuse access. All instruments are over-moulded for increased protection and achieve an IP54 weatherproof rating.

ModelMIT400/2MIT410/2MIT420/2MIT430/2
INSULATION
50 V / 100 V   X X X
250 V / 500 V / 1000 V X X X X
Variable     X X
PI- / DAR / Timed   X X X
Lock button on MΩ X X X X
CONTINUITY
Continuity 0.01 Ω - 10 MΩ 100 Ω X X X
Auto reverse polarity (setup ON-OFF)   X X X
Lead null ( Less than 10 ohms) X X X X
VOLTAGE
AC / DC Volts 600 V X X X X
mV AC / DC range X X X X
Frequency measurement 15 - 400 Hz   X X X
Input impedance 0.25 mΩ 0.25 mΩ 0.25 mΩ 0.25 mΩ
CAPACITANCE
Capacitance 0.1 nF - 10 μF     X X
OTHER FEATURES
Combined continuity and volts     X X
PASS/FAIL on limit alarms   X X X
Auto power down (setup) X X X X
On board memory     X X
Bluetooth® download + software       X
AA Alkaline or NiMH Both Both Both Both
Recharger ready       X
CAT IV 600 V / CAT III 1000 V X X X X
ACCESSORIES
Silicone leads (red/black) X X X X
Switched probe supplied   X X X
OPTIONAL Battery charger available       X

Availability:
Out of stock
Available Promotions
Grouped product items
Product Name
No options of this product are available.
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.
This product is available for shipping to the United States and Canada only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Insulation testing up to 1000 V and 200 GΩ range
  • Stabilized insulation test voltage (New)
  • Single range, faster continuity testing from 0.01 Ω to 1 MΩ (New)
  • 600 V Trms AC and DC voltage measurement
  • Live circuit detection and protection
  • User variable insulation test voltage from 100V to 1000V (New), depending on model
  • Test result storage and Bluetooth® downloading, depending on model
  • Rechargeable options for mains and car charging (New), depending on model
  • CAT IV 600 V & IP54

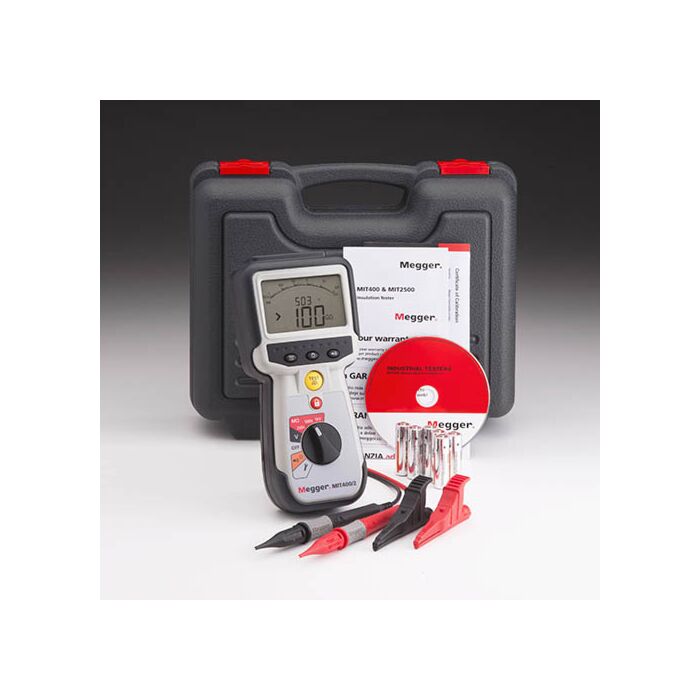

Each Unit Includes

  • Red/black silicone test leads with probes and clips
  • SP5 remote switch probe (not included with MIT400/2)
  • User guide CD
  • Batteries 6 x AA Alkaline 1.5V
  • Carry case
  • Calibration certificate
