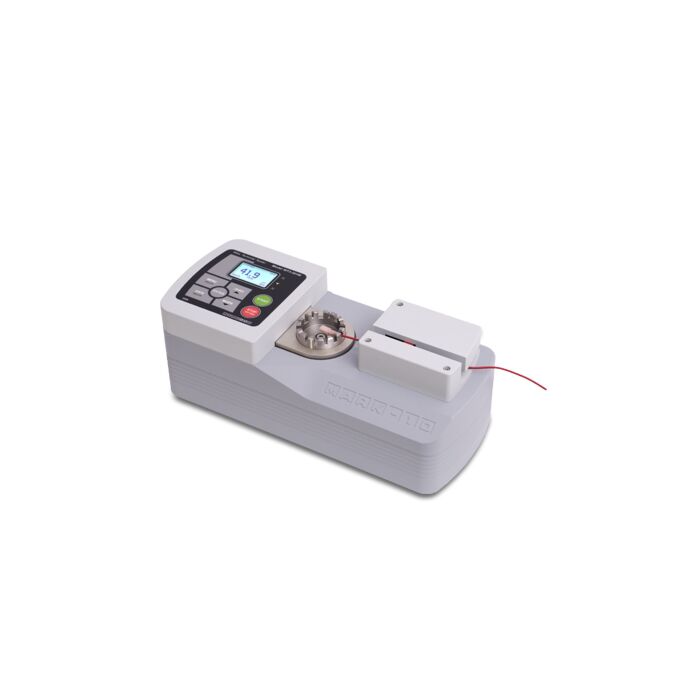

Mark-10 WT3-201M

Motorized Wire Crimp Pull Tester (200 lbF, 110V)

Order #: WT3-201M

Mfg #: WT3-201M

Questions about availability or need help? Contact Us:

(800) 633-0561
Special Price $3,752.50 Regular Price $3,950.00

Mark-10 WT3-201M

Motorized Wire Crimp Pull Tester (200 lbF, 110V)

Order #: WT3-201M

Mfg #: WT3-201M

Loading...
Print Email Save Item Compare
Special Price $3,752.50 Regular Price $3,950.00
Register to view exclusive member pricing
The WT3-201M motorized wire crimp pull tester is designed to measure pull-off forces of up to 200 lbF [1 kN] for wire and tube terminations. The tester conforms to numerous UL, ISO, ASTM, SAE, MIL, and other requirements for destructive testing. Non-destructive testing is also possible, such as pulling to a load or maintaining a load for a specified period of time, as per the requirements of UL 486A/B. Programmable pass/fail limits with red and green indicators and audio alerts help identify non-conforming samples.
Availability: Ships in 2-3 weeks

 Ships Free Over $100

Available Promotions

Choose Your Options:

Add Calibration

You have chosen to add the following Calibration Services to Your Order

Make sure your instrument is calibrated and ready to use the minute you open the box by adding our expert calibration service. Why Calibrate? For a complete descriptions of Transcat Service Levels, click here.

Already have this this item and need calibration? Request a calibration quote

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

  • Measures real-time and peak force values
  • Selectable test speed, w/high speed approach and reverse
  • Auto-start upon sample insertion
  • Auto-reverse at sample break or load
  • USB, RS-232, Mitutoyo (Digimatic), and analog outputs
  • Automatic reverse / output / data storage / zeroing upon sample break helps automate testing processes
  • 2,000-point data memory with statistics, output, and date and time stamp (date and time stamp is optional)
  • Password protection prevents unauthorized changes
  • Pass / fail indicators, audio alerts, and outputs
  • Save and recall up to 500 profiles for various test requirements (optional function) Pull to a specified load or maintain load for a specified period of time, as per UL 486A/B (optional functions)
  • Date / time stamp for all saved data (optional function)

Each Unit Includes

  • contains a universal power supply (100 - 240V)
  • includes a power cord with US plug
