Mark-10 MTT01-25 for Rent, Digital Cap Torque Tester, 25 lb/in

Order # MTT01-25-RENT1 | Mfg # MTT01-25

Request a Rental Quote









Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

Cap torque tester, 25 lbFin / 400 ozFin / 28 kgFcm / 290 Ncm / 2.9 Nm

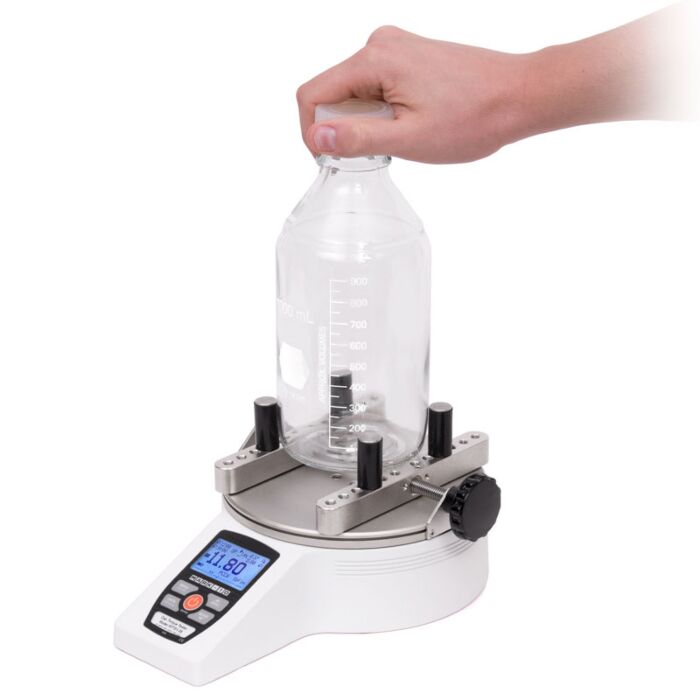

Series TT01 Cap Torque Testers are designed to measure application and removal torque of bottle caps up to 100 lbFin [11.5 Nm]. Adjustable posts effectively grip a broad range of container shapes and sizes, while optional flat and adjustable jaws are available for unique profiles. A rugged aluminum design, and simple, intuitive operation allow for use in laboratory and production environments.

Class-leading accuracy of ±0.3% and blazingly fast sampling rate of 7,000 Hz ensure reliable and consistent test results, even in quick-action applications. Password protection is provided to prevent unauthorized changes to settings and calibration.

The TT01 includes a range of sophisticated productivity-enhancing features, including USB, RS-232, Mitutoyo, and analog outputs, automatic data output and zeroing upon cap removal, memory storage for 1,000 readings, pass/fail indicators and outputs, and more. First / second peak torque detection is useful for measuring slip and breakaway torques for tamper evident closures.

Series TT01 testers include MESUR® Lite data acquisition software. MESUR® Lite tabulates continuous or single point data. Data stored in the TT01's memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.

  • Moveable posts and optional jaws accommodate a wide range of sample shapes and sizes
  • Automatic output, data storage, and zeroing upon bottle cap removal helps automate testing processes
  • Password protection prevents unauthorized changes
  • High-speed 7,000 Hz sampling rate accurately captures peak torque values
  • 5 selectable units of measurement
  • USB, RS-232, Mitutoyo, and analog outputs
  • 1,000-point data memory with statistics and outputs
  • Programmable set point indicators and outputs for pass/ fail determination
  • Configurable audio alarms and key tones
  • MESUR Lite data collection software included
