MadgeTech THERMOVAULT

Oven Temperature Recorder w/ External Thermocouple Probe

Order #: THERMOVAULT

Mfg #: 901724-00

Questions about availability or need help? Contact Us:

(800) 633-0561
$1,049.00

MadgeTech THERMOVAULT

Oven Temperature Recorder w/ External Thermocouple Probe

Order #: THERMOVAULT

Mfg #: 901724-00

$1,049.00
Availability: Ships in 3-4 Weeks
Available Promotions
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Product Highlights

Oven Temperature Recorder w/ External Thermocouple Probe includes TC4000-ST

The ThermoVault is an oven temperature profiling system. Includes standard calibration certificate.

  • TC101A Thermocouple-Based Temperature Data Logger
  • Thermal Insulated Enclosure
  • Type K Thermocouple

The ThermoVault Includes:

  • (1) TC101A: Thermocouple-Based Temperature Data Logger
  • (1) Thermally Insulated Enclosure
  • (1) Type K Thermocouple

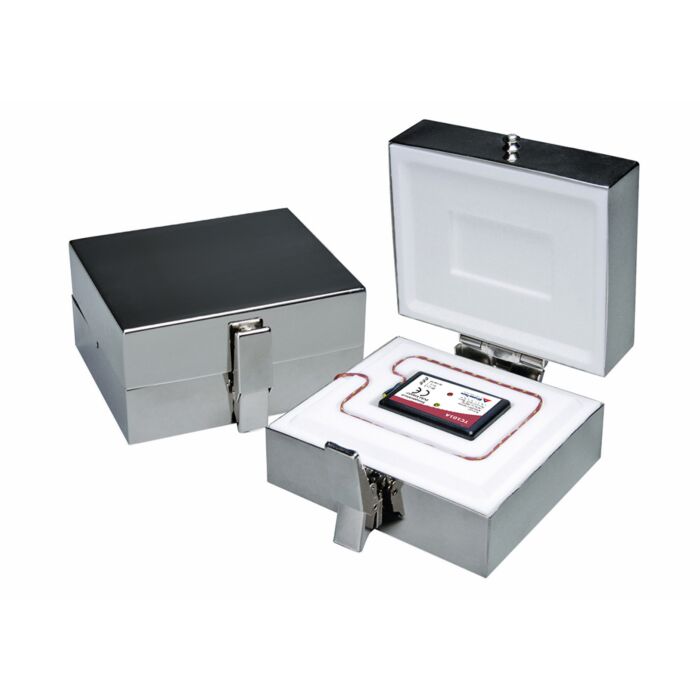

The ThermoVault is a thermal insulated, thermocouple-based temperature data logging system for oven profiling. This device can measure and record data of temperatures up to 300 °C (572 °F) for up to 36 minutes when properly sealed. Its stainless steel enclosure and external thermocouple probes provide accurate temperature measurements, with fast response times.

The ThermoVault is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Special Member Pricing
Buy with Calibration
Rental Instruments
Access to 100,000+ products
1,000's of instruments in stock
Product selection expertise
Application assistance
Purchase with a PO

Memory 500,000 readings; software configurable memory wrap; 250,000 readings in multiple start/stop mode
Reading Rate 1 reading every second up to 1 reading every 24 hours
Baud Rate 115,200
Cold Junction Compensation Automatic
Channels 1 Internal & 1 Remote
LED Indicators Red & Green
Battery Life 10 Years typical at a 15 minute reading rate
Material 304 stainless steel w/ PTFE insulation
Dimensions 5.1 in x 4.5 in x 2.5 in (129 mm x 113 mm x 64 mm)
Operating Environment See specifications sheet, 0 %RH to 95 %RH non-condensing
Required Interface Package IFC200
Internal Channel Temperature Sensor Semiconductor
Internal Channel Temperature Resolution 0.1 °C (0.18 °F)
Internal Channel Temperature Calibrated Accuracy ±0.25 °C
Remote Channel Temperature Sensor Thermocouple Types J, K, T, E, R, S, B ,N
Remote Channel Temperature Range Thermocouple Dependent
Remote Channel Temperature Resolution Thermocouple Dependent
Remote Channel Temperature Calibrated Accuracy Thermocouple Dependent
