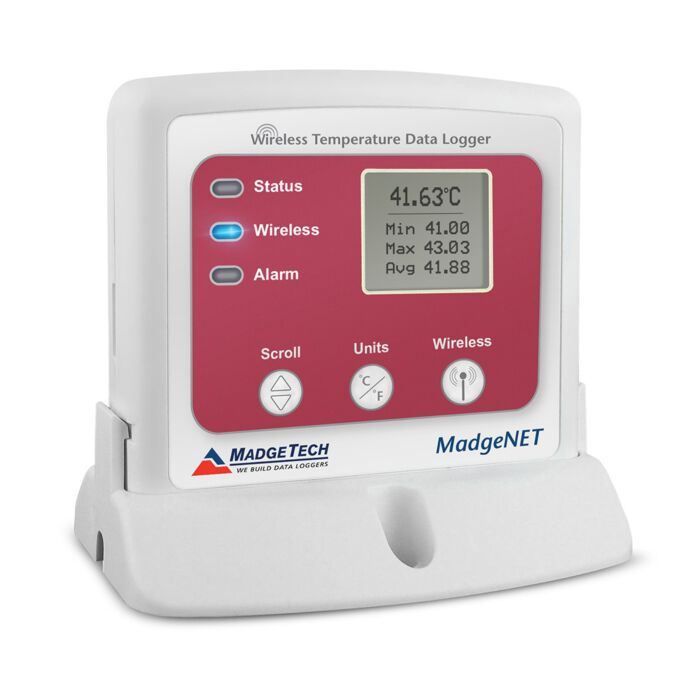

MadgeTech RFTEMP2000A Wireless Temperature Data Logger

Overview

Product Highlights

Wireless Temperature Data Logger with LCD

The RFTemp2000A is a wireless ambient temperature data logger. Includes ISO17025 accredited calibration certificate.

Digital Display
Continuous Monitoring
Configurable Alarms & Notifications

The RFTemp2000A is a wireless ambient temperature data logger

This device features an LCD screen which provides instant access to current readings, minimum, maximum and average statistics. Equipped with user-programmable alarms, the RFTemp2000A will alert or notify users via email or text when thresholds are breached, allowing users to take immediate action.

The RFTemp2000A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

The RFTemp2000A is also MadgeTech Cloud Services ready, providing users the ability to monitor data remotely on any smartphone, tablet or internet enabled device.

Technical Resources

Madgetech RFTEMP2000A Datasheet
Madgetech RFTEMP2000A Product User Guide

Specifications

Memory	32,256 readings
Reading Rate	1 reading every second up to 1 reading every 24 hours
Baud Rate	250,000
LED Indicators	Green, Blue & Red
Battery Life	5 years typical at a 1 minute reading rate
Material	ABS plastic
Dimensions	3.25 in x 3.5 in x 0.95 in (82.6 mm x 88.9 mm x 24.1 mm) - Data logger only
IP Rating	IP22
Operating Environment	-20 °C to +60 °C (-4 °F to +140 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package	RFC1000
Approvals	US (FCC), CA (IC), CE, South Korea (KCC), China (CMIIT), Japan (LCIE)

Internal Channel Temperature Sensor	Internal Semiconductor
Internal Channel Temperature Range	-20 °C to +60 °C (-4 °F to +140 °F)
Internal Channel Temperature Resolution	0.01 °C (0.018 °F)
Internal Channel Temperature Calibrated Accuracy	±0.5 °C

RF Carrier Frequency	2.45 GHz IEEE 802.15.4 ultra-low power MadgeNET Wireless Transceiver with fully by-directional communication.
Output Power	+0 dBm typical
Receiver Sensitivity	-95 dBm typical
Typical outdoors Line of sight	Up to 2000 ft
Typical Indoors line of sight	Up to 500 ft
