MadgeTech PULSE101A

Order # PULSE101A | Mfg # 901312-00
$99.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

Pulse Counter/Totalizer and Recorder with a 10 year battery life

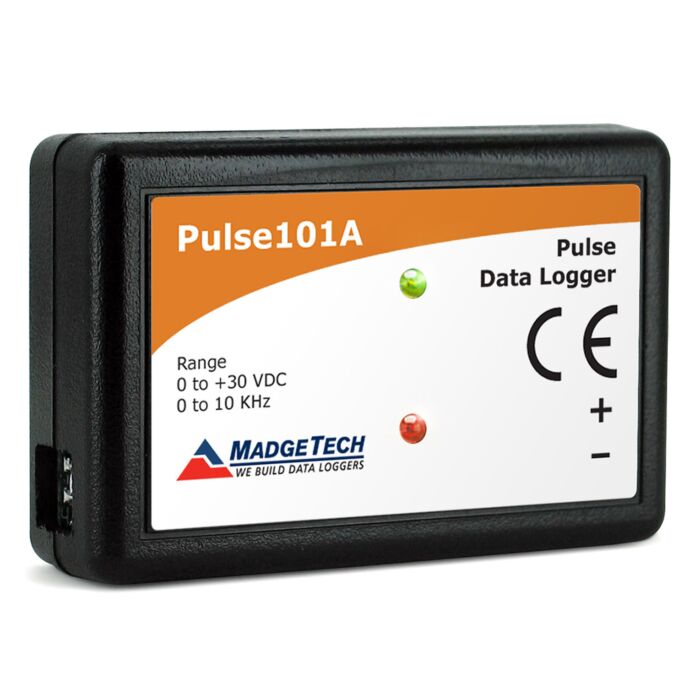

The Pulse101A is a compact, pulse data logger. Includes declaration of conformance.

  • Compact Size
  • 10-Year Battery Life
  • Memory Capacity of 1,000,000+ Readings

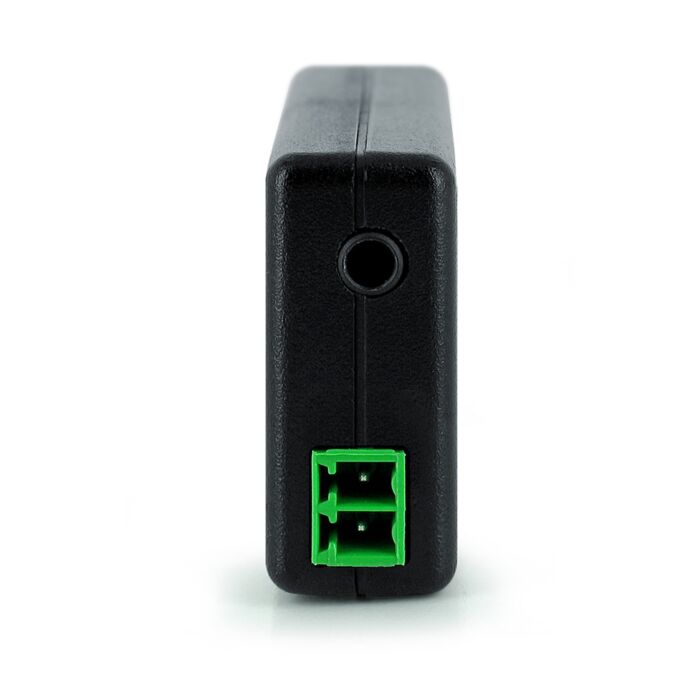

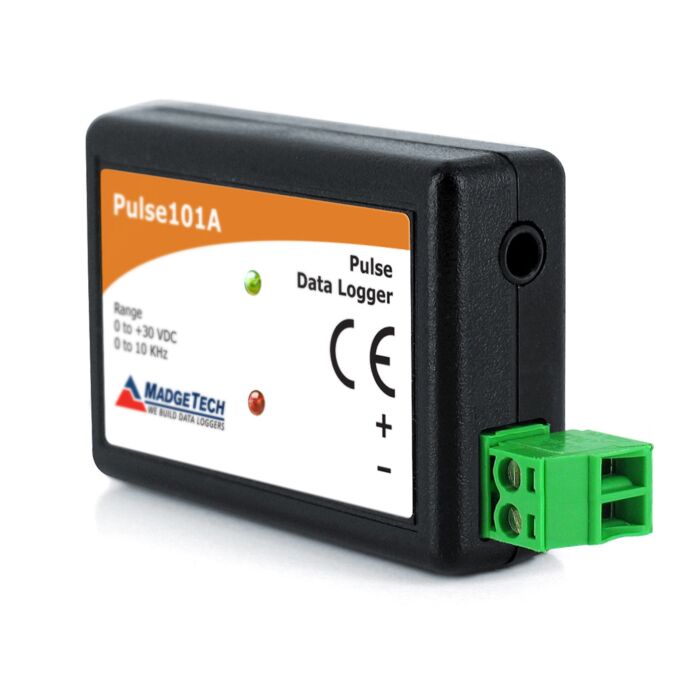

The Pulse101A is a compact, pulse data logger designed to accurately measure and record events occurring within a specified time frame. This device is compatible with many switches, meters and transducers.

The Pulse101A has a maximum pulse rate of 10 KHz to capture rapid events for a wide range of applications. With a 10-year battery life and the ability to store up to 1,047,552 readings, the Pulse101A can be deployed for long-term assignments.

The Pulse101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Technical Resources

Specifications

Memory 1,047,552 readings
Reading Rate 1 reading every second up to 1 reading every 24 hours
Baud Rate 115,200
LED Indicators Red and Green
Push-Button Start Yes
Battery Life 10 years typical, dependent upon frequency and duty cycle
Material Polycarbonate
Dimensions 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)
Operating Environment -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package IFC200
Approvals CE
Maximum Pulse Rate 10 KHz
Pulse Input Range 0 to 30 VDC continuous
Pulse Input Low <0.4 V
Pulse Input High >2.8 V
Pulse Input Impedance 60000 Ω
Pulse Internal Weak Pull-up <60 ?A
