MadgeTech AVS140-6-902068
Temp.Data Logger,-40-140°C,24" Flex Probe,1.5"Piercing Tip

Order #: HITEMP140-PT-1

Mfg #: 900230-00

Questions about availability or need help? Contact Us:

(800) 633-0561
$539.00

MadgeTech AVS140-6-902068

Temp.Data Logger,-40-140°C,24" Flex Probe,1.5"Piercing Tip

Order #: HITEMP140-PT-1

Mfg #: 900230-00

$539.00
Availability: Ships in 3-4 weeks
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.
This product is available for shipping to the United States, Canada, and Puerto Rico only.

Product Highlights

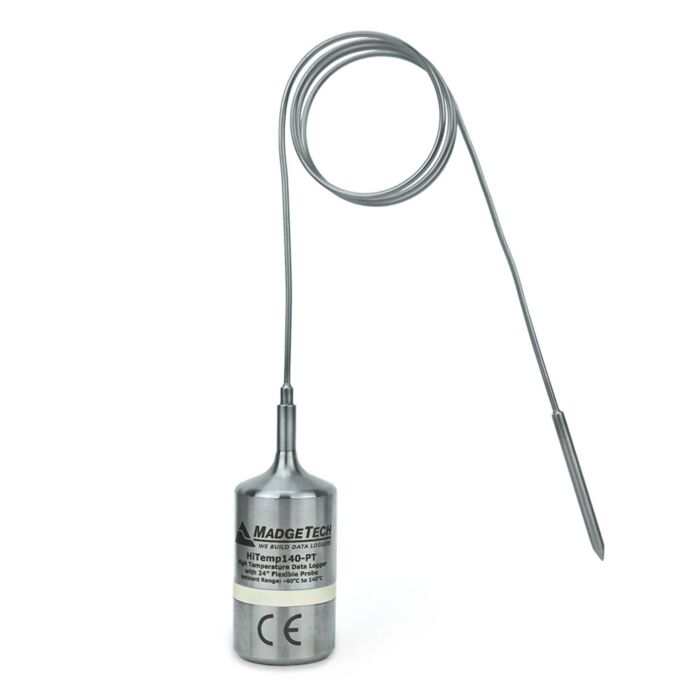

140 °C Temperature Data Logger with a 24" Flexible Probe and 1.5" Piercing Tip

The HiTemp140-PT is a high temperature, precision data logger with a bendable probe. Includes ISO17025 accredited calibration certificate.

  • Submersible
  • Available in Various Probe Lengths & Styles
  • Measures Temperatures from -200 °C to +350 °C

The HiTemp140-PT is a submersible, high temperature data logger with a 24 inch bendable probe. This device is extremely versatile and can be tailored to the application with various probe lengths and styles available.

The HiTemp140-PT can withstand temperatures ranging from -40 °C to +140 °C (-40 °F to +284 °F), but is capable of measuring extended temperatures up to 350 °C (662 °F) (probe dependent). With a storage capacity of up to 65,536 time and date stamped readings, the HiTemp140 can be programmed for immediate start or delayed start up to 18 months in advance.

The HiTemp140-PT is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Win a Generac Generator when purchasing $750 or more from Transcat.Win a Generac Generator when purchasing $750 or more from Transcat.
Memory 65,536 readings
Reading Rate 1 reading every second up to 1 reading every 24 hours
Baud Rate 125,000
Battery Life 2 years typical (1 minute reading rate)
User Replaceable Battery
Material 316 Stainless Steel
HiTemp140 Pig Tail Probe Dimensions Body: 1.75 in x 0.97 in dia. (45 mm x 25 mm dia.)
HiTemp140-PT-1: Probe tip is 1.7 in x 0.125 in dia. (42 mm x 3.2 mm dia.). Bendable portion is 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.)
HiTemp140-PT-5: Probe tip is 4.8 in x 0.125 in dia. with 1 in x 0.188 dia. handle (121 mm x 3.2 mm dia. with 25 mm x 4.8 mm dia. handle). Bendable portion is 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.)
HiTemp140-PT-12: Probe tip is 1.7 in x 0.125 in dia. (42 mm x 3.2 mm dia.). Bendable portion is 12 in x 0.062 in dia. (305 mm x 1.6 mm dia.)
IP Rating IP68
Submersible Yes
Operating Environment -40 °C to +140 °C (-40 °F to +284 °F); 0 %RH to 100 %RH; 0.002 PSIA to 100 PSIA (Body of Logger Cannot Exceed 140 °C)
Required Interface Package IFC400
Approvals CE
Temperature Sensor 100 Ω Platinum RTD
Temperature Resolution 0.01 °C (0.018 °F)
Temperature Calibrated Accuracy ±0.1 °C/±0.18 °F (20 °C to +140 °C/68 °F to +284 °F)
±0.3 °C/±0.54 °F (-20 °C to +19.99 °C/-4 °F to +67.98 °F)
±0.4 °C/±0.72
