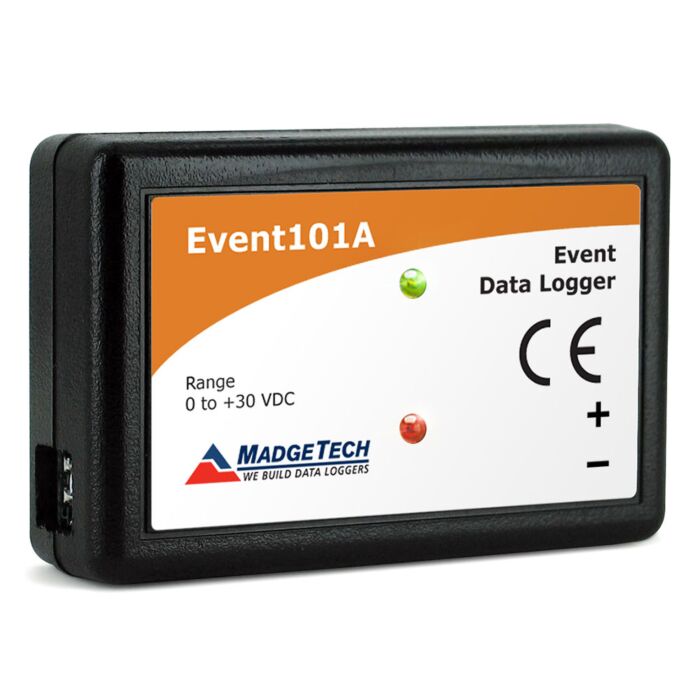

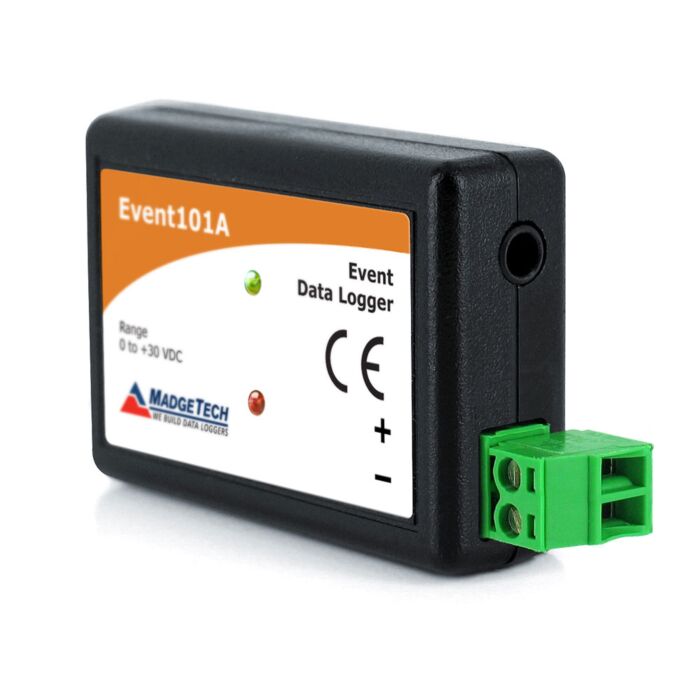

MadgeTech EVENT101A

Order # EVENT101A | Mfg # 900103-00
$99.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

Event Recorder with a 10 year battery life

The Event101A is a compact data logger that records occurrences of a specific event. Includes declaration of conformance.

  • Compact Size
  • 10-Year Battery Life
  • Input Range up to 30 V

The Event101A is a compact data logger that monitors and records the occurrences of a specific event. With a 10-year battery life, the Event101A is ideal for long-term field studies that focus on the when a specific event happens and for how long.

This device offers an input range of up to 30 V with a storage capacity up to 838,041 readings. The Event101A can be configured to utilize the memory wrap option to extend deployment capability or programmed to start at a specified date and time up to 18 months in advance.

The Event101A is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data is provided for analysis and can be viewed as customizable engineering units.

Technical Resources

Specifications

Memory 838,041 readings
Reading Rate 4 Hz to 1 every 24 hours
Baud Rate 115,200
LED Indicators Red and Green
Battery Life 10 years typical, dependent upon frequency and duty cycle
Material Polycarbonate
Dimensions 1.4 in x 2.1 in x 0.6 in (35 mm x 54 mm x 15 mm)
Operating Environment -40 °C to +80 °C (-40 °F to +176 °F), 0 %RH to 95 %RH non-condensing
Required Interface Package IFC200
Approvals CE
