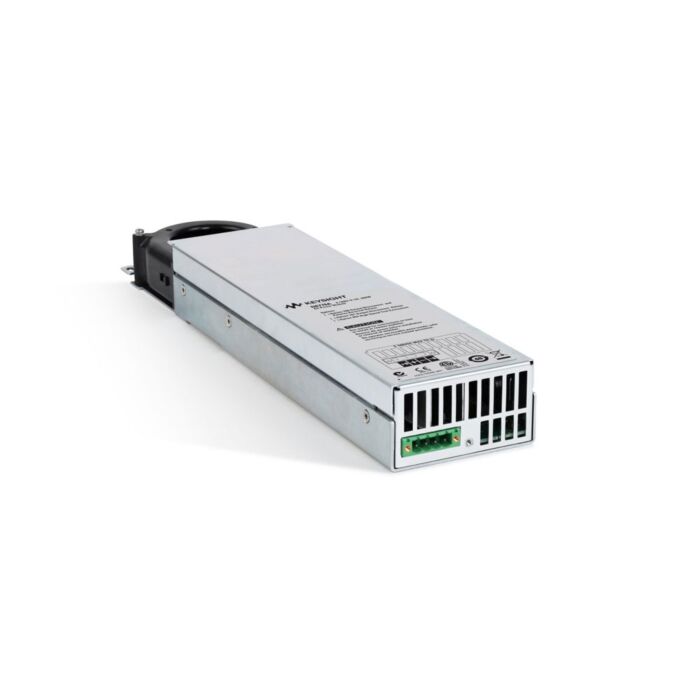

Keysight N6776A for Rent, DC Power Module - 100V, 3A, 300W

Order # N6776A-RENT2 | Mfg # N6776A

Request a Rental Quote









Have a Question? Speak to a Transcat Rental Expert: 800.264.4059

Have a Question?

Speak to a Transcat Rental Expert at 800.264.4059

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States, Canada, and Puerto Rico only.

Overview

Product Highlights

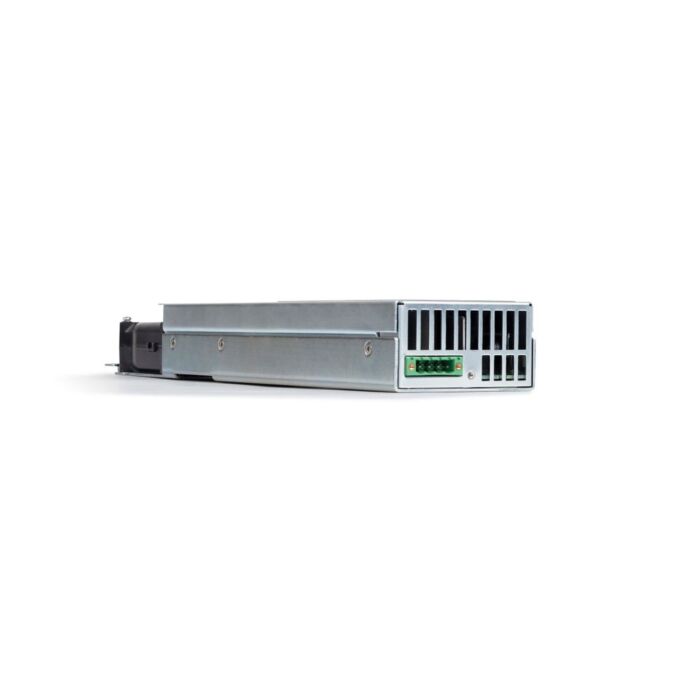

The Keysight N6776A is a 300 W basic DC power module that provides programmable voltage and current, measurement and protection features at a very economical price, making these modules suitable to power the DUT or to provide power for ATE system resources such as fixture control.

This module is used in both the small, multiple output 1U high N6700 Low-Profile Modular Power System (for ATE systems) and the multiple output N6705 DC Power Analyzer (for bench testing). GPIB, LAN, USB, and LXI compliance are standard. Select from more than 20 different DC power modules, ranging in capability from basic to high precision, and in power from 20 - 300 W.

Output ratings
  • Voltage: 100 V
  • Current: 3 A
  • Power: 300 W
Programming accuracy (at 23°C ±5°C)
  • Voltage: 0.1% +100 mV
  • Current: 0.15% + 30 mA
Ripple & noise (20 Hz to 20 MHz)
  • Voltage peak-to-peak: 45 mV
  • Voltage rms: 18 mV
  • Current rms: 6 mA
