Keysight N5744A DC Power Supply, 20V, 38A, 760W GPIB, LAN, USB, LXI

Order # N5744A | Mfg # N5744A
$3,693.00
Also Available:
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

  • Output ratings:
    • Voltage: 20 V
    • Current: 38 A
    • Power: 760 W
  • Programming Accuracy:
    • Voltage 0.05%+ 10 mV
    • Current 0.1%+ 38 mA
    • Ripple & Noise
    • CV p-p: 60 mV
    • CV rms: 8 mV
    • CC rms: 76 mA
  • Load Regulation:
    • Load Effect (change from 10% to 90%) Voltage: 4 mV
    • Load Effect (change from 10% to 90%) Current: 12.6 mA
    • Load Transient Recovery Time: =1 ms

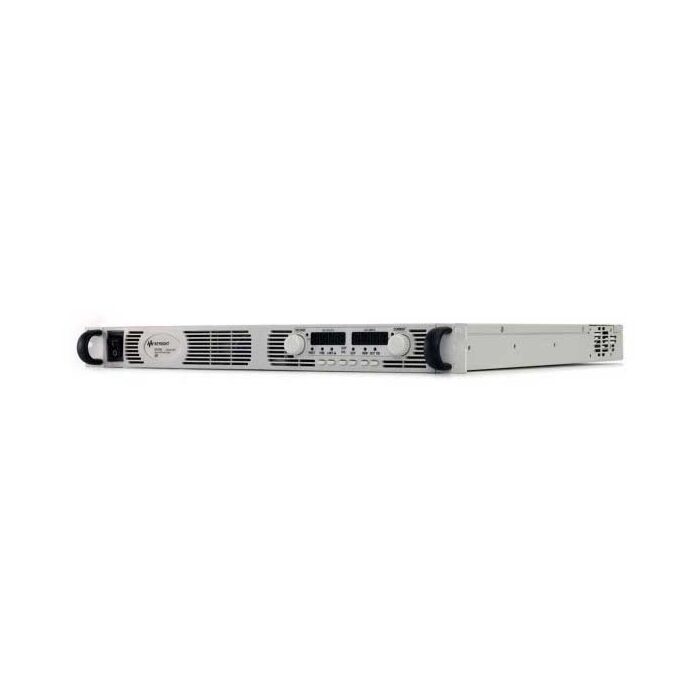

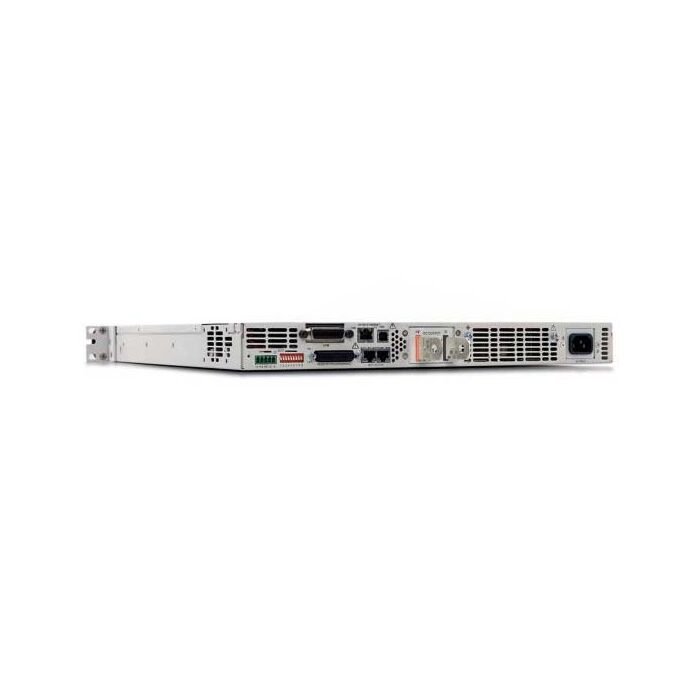

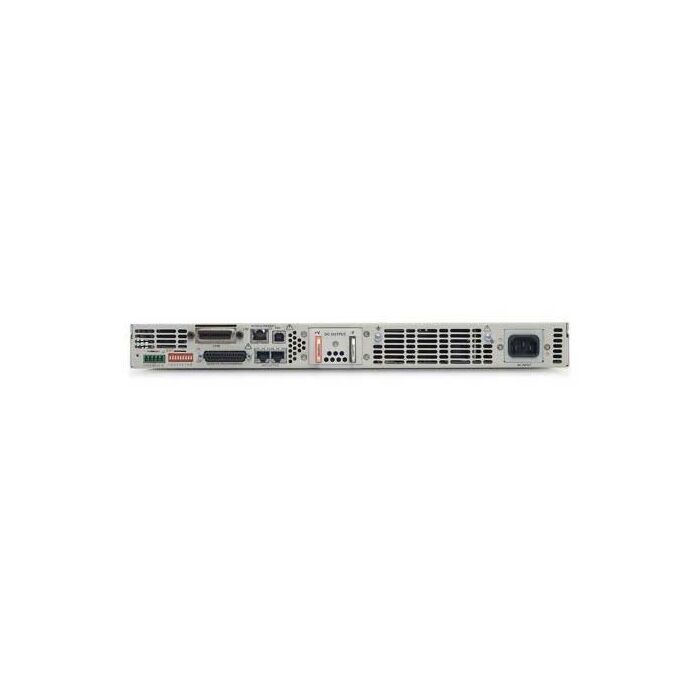

The single output, 760 W N5744A, provides universal AC input, GPIB, LAN, USB, LXI compliance, and analog / resistance control of output voltage and current. It delivers reliable performance and enhanced capabilities in a compact 1U package.

Guide to Agilent Power Supplies

Each Unit Includes

  • Includes BV0003B Power Supply app
