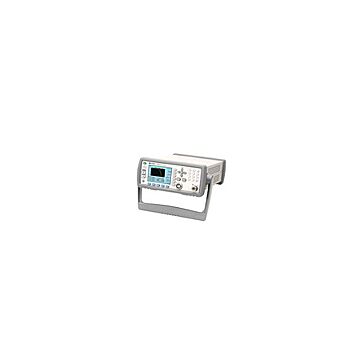

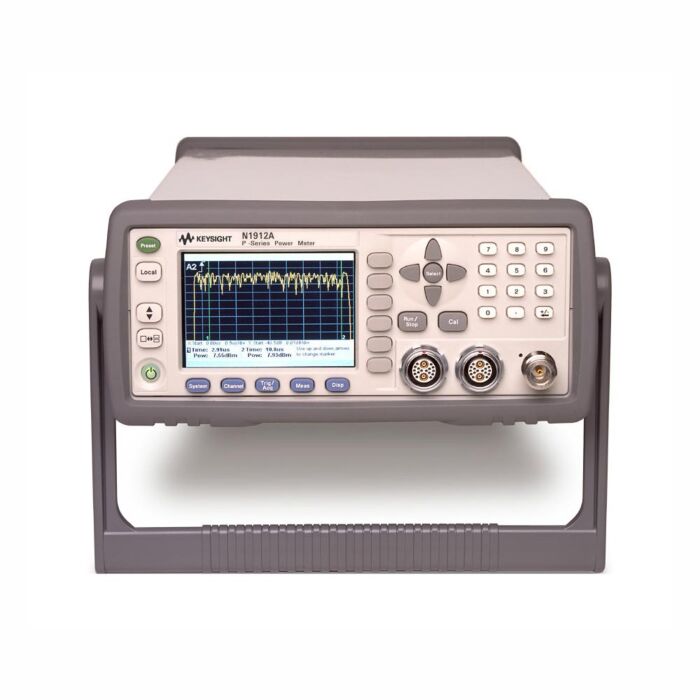

Keysight Technologies N1912A

Product Highlights

• 30 MHz video bandwidth
• Single shot real time capture at 100 Msample/s per second
• Key Measurements: - peak, average, peak-to-average ratio, rise time, fall time and pulse width
• 22 Predefined formats: WiMAX, DME, HSDPA, etc.
• One screen view for pulse measurement analysis: Auto Scale, Auto Gate, Rise/Fall Time, Duty Cycle, etc.
• Internal Zeroing and Calibration while connecting to the DUT
• BenchVue software enabled
• LXI-C Compliance
• Average triggering for average power measurement

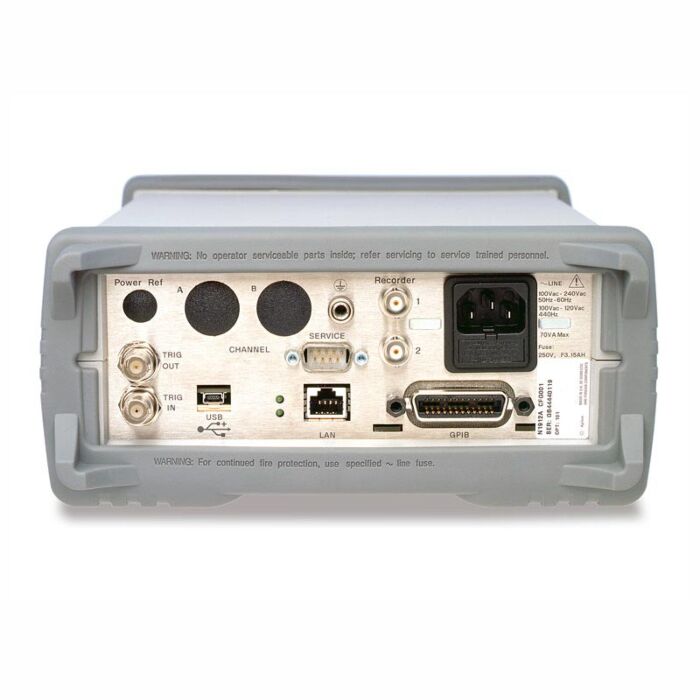

• Versatile connectivity with USB, LAN and GPIB standard
• High Speed Complementary Cumulative Distribution Function (CCDF) statistical analysis
• Compatible with the industry standard 8480 and E-series sensors which provide a wide dynamic range from -70 to +44 dBm, and a frequency coverage from 9 kHz to 110 GHz.
• Compatibility with E932x power sensors
• Difference and ratio math functions : (A-B, B-A, A/B and B/A)
• 2-year calibration cycle
