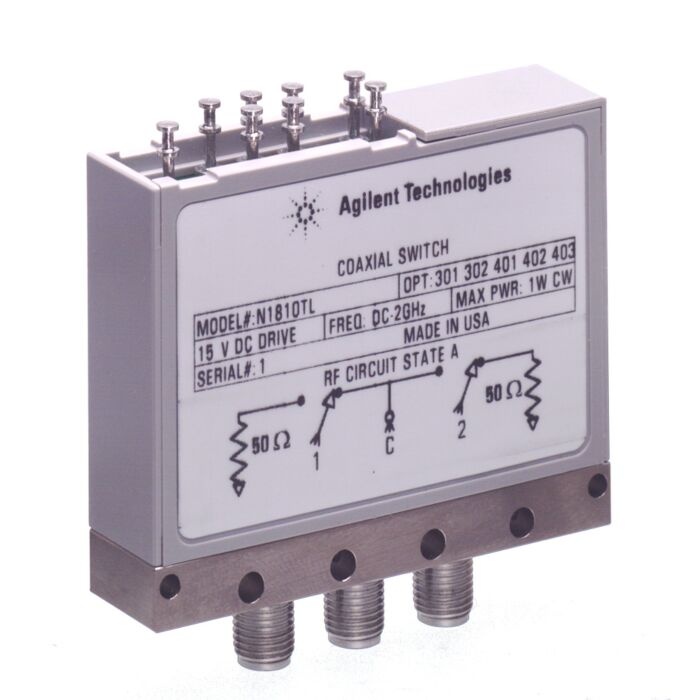

Keysight N1810TL

Coaxial Switch,SPDT Terminated Latching w/Current Interrupt

Order #: N1810TL

Mfg #: N1810TL

$979.00

Availability: Ships in 4-6 weeks

This product is available for shipping to the United States and Canada only.

Only need this item for a short time? Learn about rentals

Questions about this product? Speak to an expert

Terminated single pole double throw EM switch
Operating frequency from DC to 4, 20, 26.5, 40, 50 or 67 GHz
Female SMA/2.92 mm/2.4 mm and 1.85 mm connectors
Built-in current interrupt
Superior isolation: > 120 dB at 4 GHz and 70 dB at 67 GHz
Low SWR: < 1.10 at 4 GHz and 1.90 at 67 GHz
Low insertion loss: < 0.27 dB at 4 GHz and 1.12 dB at 67 GHz
Excellent insertion loss repeatability: 0.03 dB at 40 GHz, 0.05 dB at 50 GHz and 0.08 dB at 67 GHz
Long operating life of 5 million cycles guaranteed, 10 million cycles typical
Coil voltage levels 5 V, 15 V or 24 V
D-subminiature 9-pin connectors or solder lug terminals
Standard or TTL/5 V CMOS compatible drive
Optional position indicators

Keysight Technologies Agilent N1810/1/2 Coaxial Switches Datasheet
