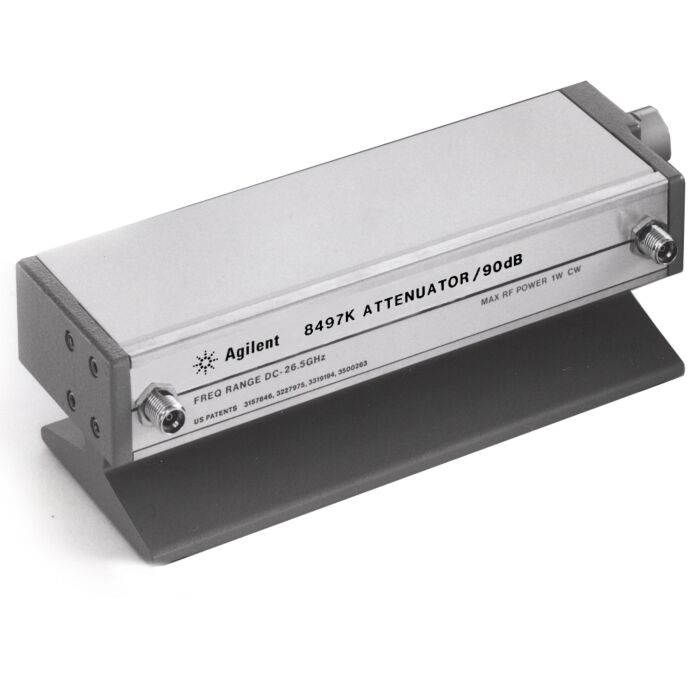

Keysight 8497K Programmable Step Attenuator, DC to 26.5GHz

Programmable Step Attenuator DC to 26.5GHz

Order #: 8497K

Mfg #: 8497K

$3,522.00

Availability: Ships in 4-6 weeks

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

This item is available as RENTAL at

Call for price

Shop now

Frequency range: dc to 26.5 GHz
Insertion loss at 0 dB: 0.4 dB + 0.09 dB/GHz
Maximum SWR: 1.25 to 6 GHz, 1.45 to 12.4 GHz, 1.6 to 18 GHz, 1.8 to 26.5 GHz
Repeatability life: 0.03 dB max to 18 GHz, ±0.05 dB max to 26.5 GHz 5 million cycles per section (typical)
5 million cycles per section
Maximum RF input power: 1 W (average), 100 W (peak)
Connector type: 3.5 mm female
Programming connector: 12-pin Viking, optional 14-pin DIP
