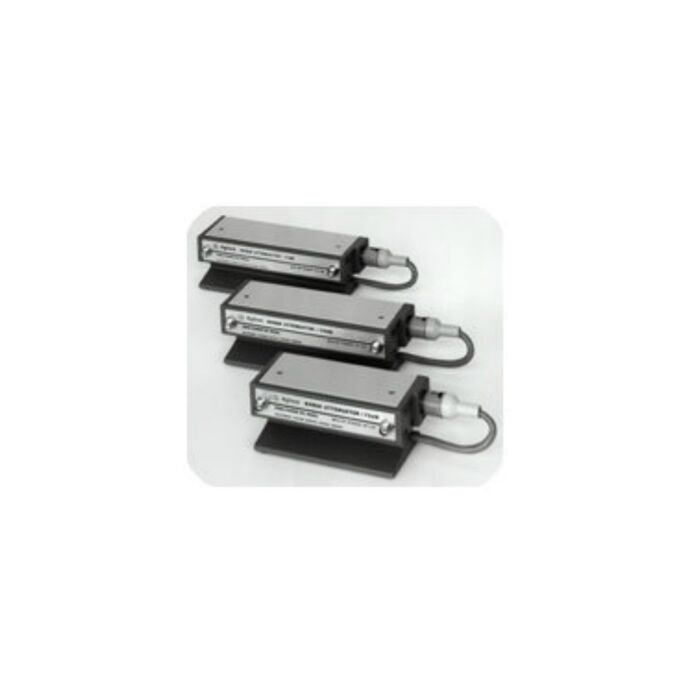

Keysight 8496G Programmable Attenuator, 4GHz, 110dB, 10dB Steps

Order # 8496G | Mfg # 8496G
$2,244.00
Also Available:
Rental
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

  • Connector type: choice of type-N female, SMA female, APC-7
  • Programming connector: 12-pin Viking, optional 14-pin DIP.
  • Maximum RF input power: 1 W (average), 100 W (peak)
  • Repeatability life: 0.03 dB max 5 million cycles per section, typical
  • Frequency range: dc to 4 GHz
  • Insertion loss at 0 dB: 0.6 dB + 0.09 dB/GHz
  • Maximum SWR: 1.5

Technical Resources

Keysight Technologies 8494G/H, 8495G/H, & 8496G/H Programmable Step Attenuators Datasheet
