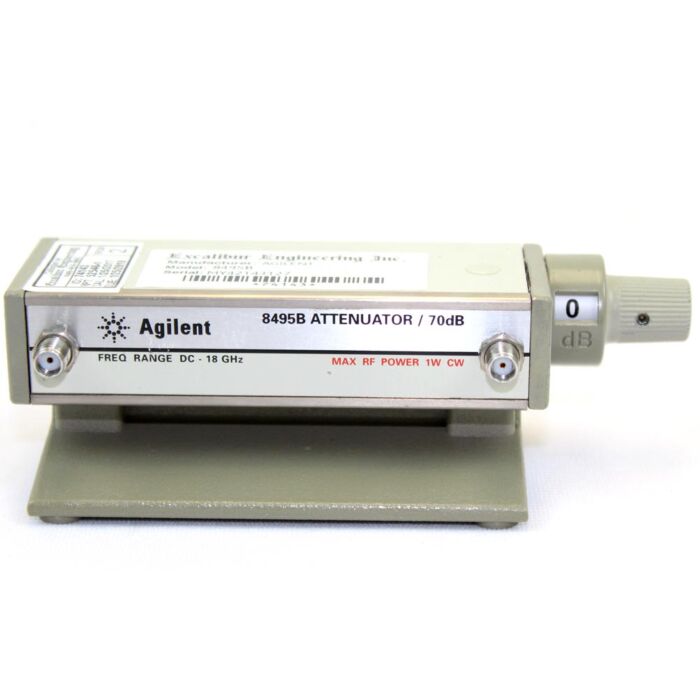

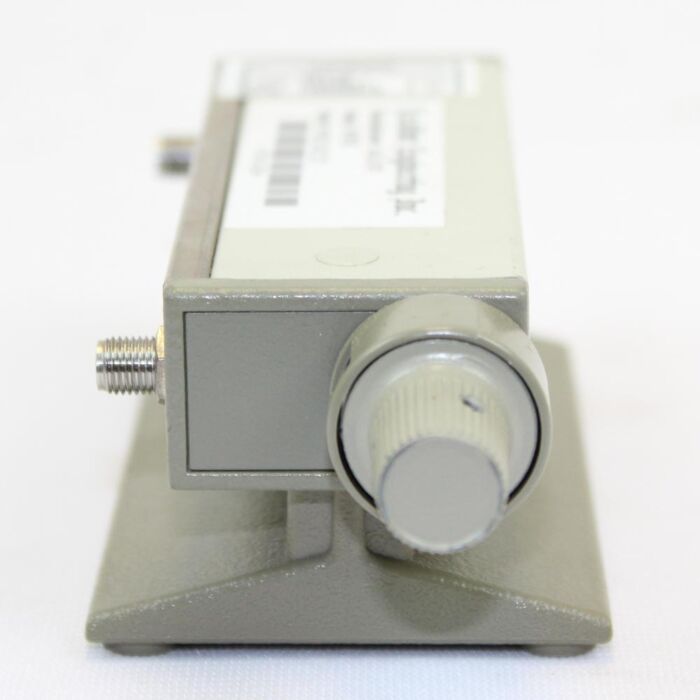

Keysight / Agilent 8495B Used for Sale
Manual Step Attenuator DC to 18GHz

Order #: 8495B-USED

Mfg #: 8495B

Questions about availability or need help? Contact Us:

(800) 633-0561

Keysight / Agilent 8495B Used for Sale

Manual Step Attenuator DC to 18GHz

Order #: 8495B-USED

Mfg #: 8495B


Used instruments from TranscatTranscat is a Premier Supplier Used Test and Measurement Equipment. Many options are available for a variety of instruments. Contact Transcat for all your used equipment needs.

Availability: Ships in 3-4 weeks
Available Promotions
This item is available as RENTAL at
Call for price
Shop now
This item has NEW version starting at
Shop now
Questions about this product? Speak to an expert

Product Highlights

The Keysight 8495B dc to 18 GHz manual step attenuator offers exceptional repeatability and reliability. Attenuation is provided in 10 dB steps from 0 to 70 dB. Precision gold-plated leaf springs ensure long life (over 5 million cycles) and very high attenuator repeatability (typically 0.01 dB). To improve measurement accuracy, NIST traceable data (SWR and attenuation) is available as Option UK6. Custom step attenuator/switch combinations are possible. The Keysight 11716A/B/C interconnect kits provide quick connection of Keysight 8494/5/6/7 1 dB and 10 dB step attenuators in series for greater dynamic range with 1 dB steps.

  • Frequency Range: dc to 18 GHz
  • Insertion Loss at 0 dB: 0.4 dB + 0.07 dB/GHz
  • Maximum SWR: 1.35 to 8 GHz, 1.5 to 12.4 GHz, 1.7 to 18 GHz
  • Repeatability and Life Span
    • Repeatability life: 0.03 dB max 5 million cycles per section, typical
    • 5 million cycles per section
    • Power handling
      • Maximum RF Input Power: 1 W (average), 100 W (peak)
    • Connector Type: choice of Type-N female, SMA female, APC-7
    • Connect in series with 11716A Attenuator Interconnect Kit, Type-N
    • Connect in series with 11716C Attenuator Interconnect Kit, SMA
