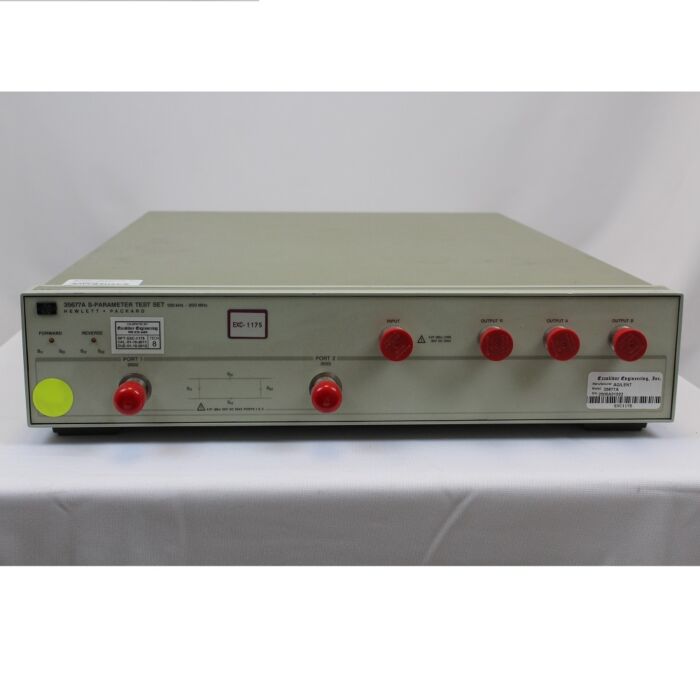

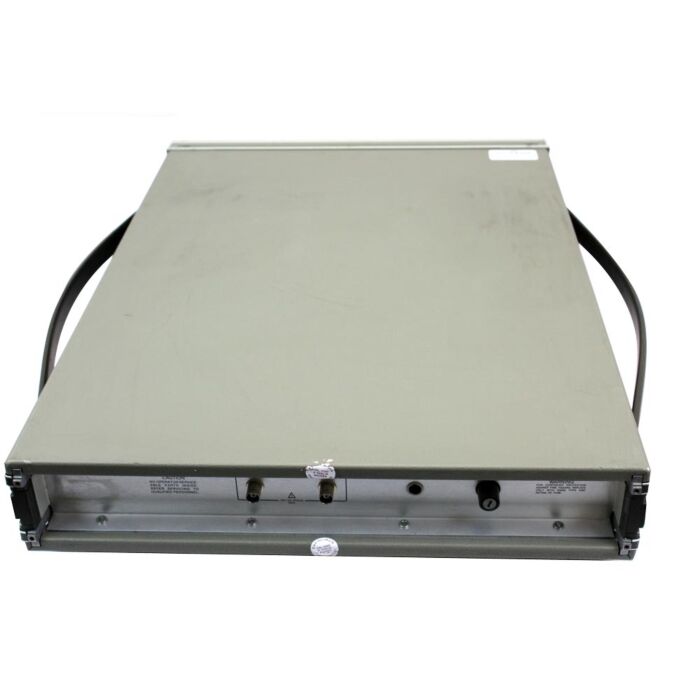

Used Keysight / Agilent 35677A S-Parameter Test Set, 100 kHz to 200 MHz

Product highlights

HP Model 3577A is a high performance network analyzer for audio, video, baseband and IF application s from 5 Hz to 200MHz. The 3577 A m a ke s precision measurements to characterize filters, amplifiers, crystal devices, cables, and subsystems used in communications, telecommunication s, consumer electronics, components and general purpose testing.

• High speed / high accuracy measurements
• .001 dB, .005 degree , 1 ps, .001 Hz resolution
• Built- in three-term error correction plus normalization
• Magnitude , phase, polar , real, imaginary, and group delay display modes
• Convenience features including direct plotter control and vector math functions
