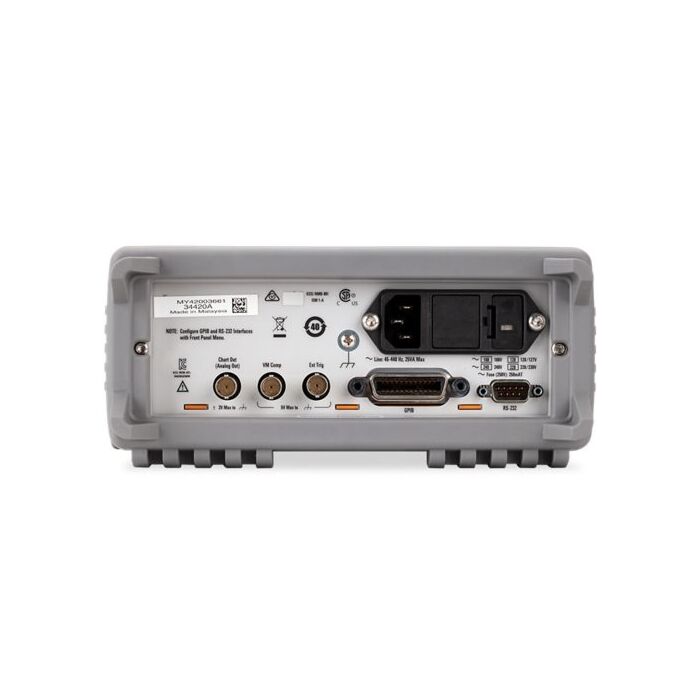

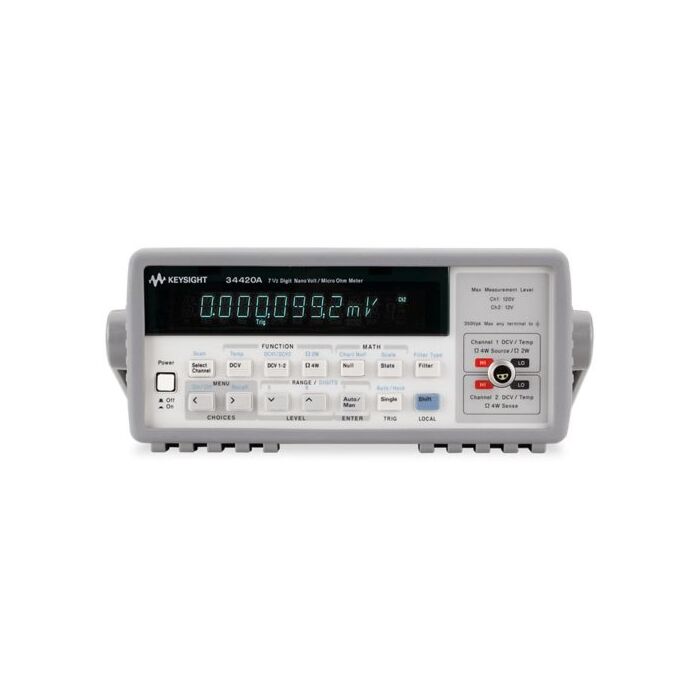

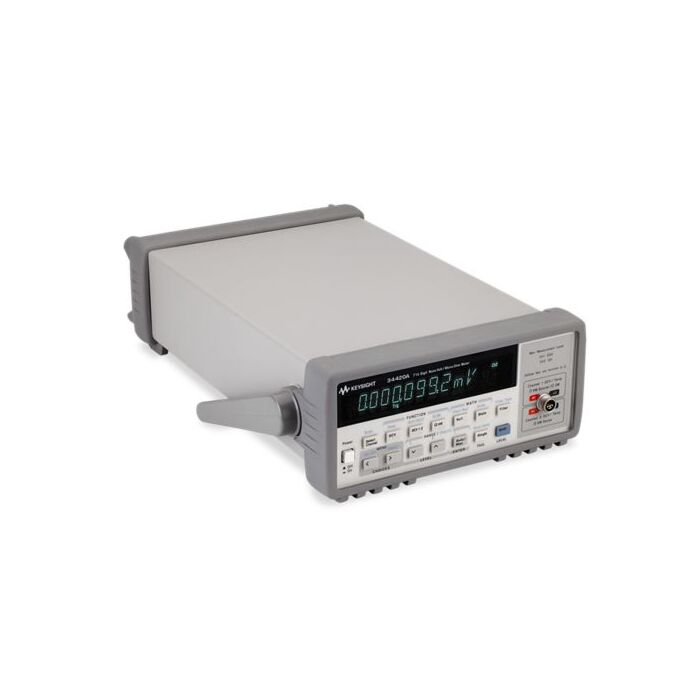

Keysight 34420A Nanovolt/Micro-ohm Meter, 7.5 Digit

Order # 34420A | Mfg # 34420A
$7,920.00
arrow_drop_down

Tariff fees or manufacture imposed surcharges may be applicable.

This product is available for shipping to the United States and Canada only.

Overview

Product Highlights

The Keysight 34420A nano-volt / micro-ohm meter is a high-sensitivity multimeter optimized for performing low-level measurements. This digital ohm meter combines low-noise voltage measurements with resistance and temperature functions. This new standard in low-level flexibility and performance provides you with accurate, repeatable measurements you can count on.

  • High-sensitivity DCV and resistance measurements at 100 pico-volt and 100 nano-ohm
  • Accurate temperature measurements with 0.003 C accuracy using standard platinum resistance thermometer (SPRT) probes
  • Built-in low noise 2-channel scanner simplifies voltage comparisons
  • Download BenchVue Basic app for free to control your instruments

Built-In Resistance and Temperature

The 34420A 7.5-digit multimeter combines low-noise, nanovolt input circuits with a high-stability current source for precise low-level resistance measurements. This reduces the cost and complexity of using an external current source. It includes three resistance modes:

  • standard
  • low-power
  • voltage-limited for dry-circuit testing
  • Digits of Resolution: 7.5 digits
  • Basic 1-Yr DCV Accuracy: 0.003%
  • Measurement Functions: 2- and 4-wire Resistance, Temperature, DCV

Offset compensation minimizes thermal electromotive forces (EMFs) and associated errors.

Each Unit Includes

  • low thermal input cable (34102A)
  • low thermal shorting plug (34103A)
  • Kelvin clip set (11062A)
  • calibration certificate
  • power cord

Technical Resources

Keysight 34420A Nanovolt/Micro-ohm Meter, 7.5 Digit Accessories

checkbox-empty
Select

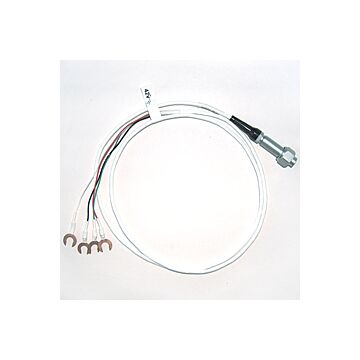

Keysight Technologies 34102A Low-Thermal 1.2m 4-Cond. Shielded Input Cable for 34420A
checkbox-empty
Select

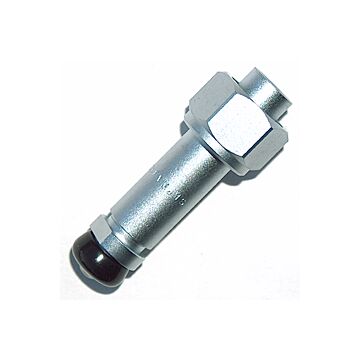

Keysight Technologies 34103A Low-Thermal Shorting Plug for 34420A
checkbox-empty
Select

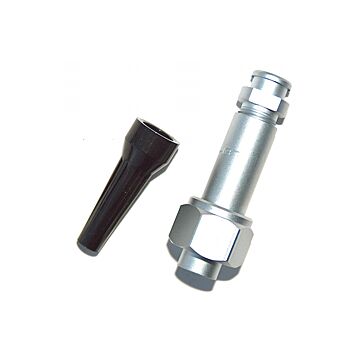

Keysight Technologies 34104A Low-Thermal Input Connector for 34420A
