Vector Network Analyzer Transmission/Refelection
Order #: N9917A-210
Mfg #: N9917A-210
- Vector network analyzer
- Transmission/reflection (S21, S11), magnitude and phase
- 30 kHz to 18 GHz
- Directivity > 42 dB, dynamic range 100 dB to 9 GHz, 90 dB to 18 GHz
- Flat output power (± 1 dB) across whole frequency range, adjustable in 1 dB steps
A base N9917A combination analyzer includes a cable and antenna analyzer. Option 210 adds:

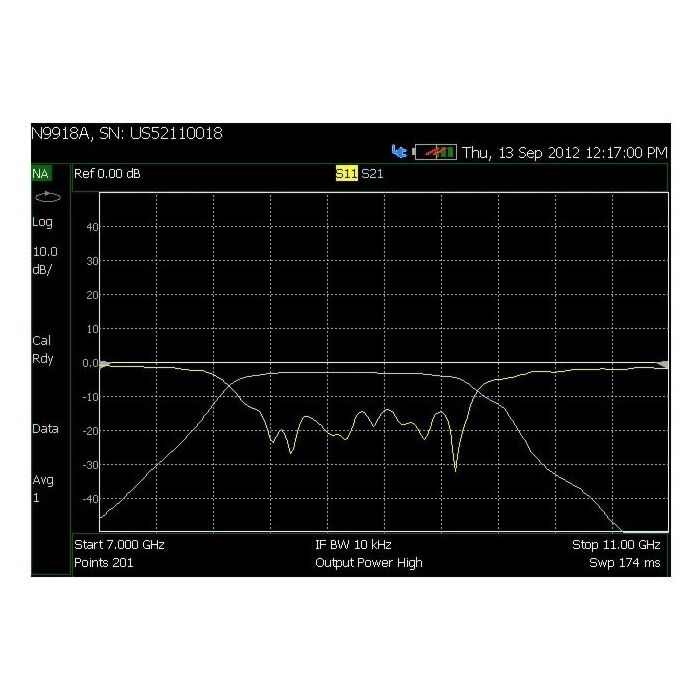

- A vector network analyzer mode with transmission/reflection or S21 and S11 measurements, both magnitude and phase. Available calibrations are CalReady, one-port OSL, response and enhanced response.
- Insertion loss measurement to the base cable and antenna analyzer or CAT mode.
- 2-port transmission measurement to the vector voltmeter mode, available as Option 308.
- Tracking capability to the spectrum analyzer independent source, available as Option 233 (source and spectrum analyzer set to sweep a frequency range, in sync)
